Clear Screen Overlay

Optional clear screen overlay used to protect C-more Micro-Graphic displays from minor
scratches and wear. Package contains three clear screen overlays.
EA-6-COV2

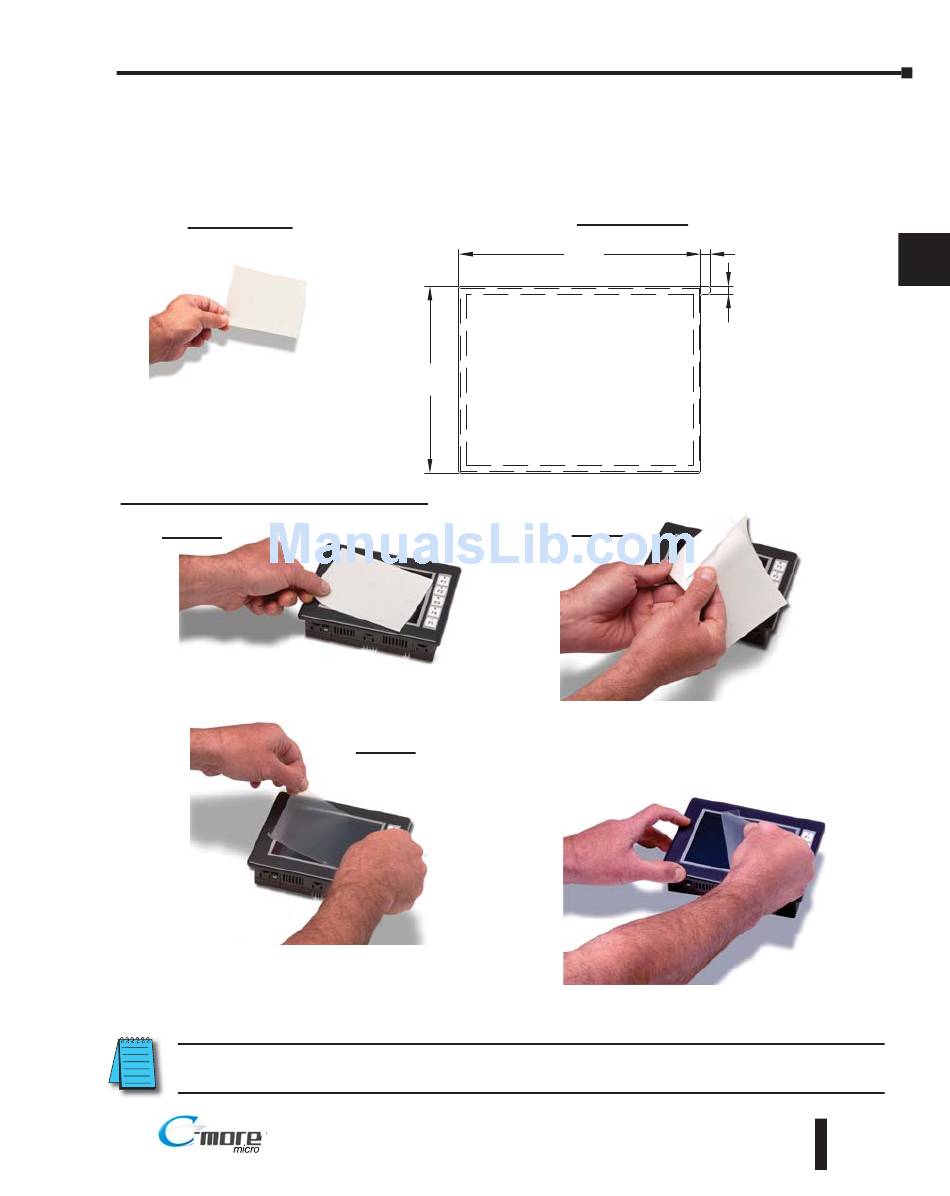

Clear Screen Overlay Installation
Step 1
Remove the overlay from the
Align the overlay with the screen
and press the adhesive firmly
*NOTE: The protective cover ships with a thin protective sheet on the face of the cover that needs to be
carefully removed. If your panel is not clear, the protective sheet may not have been removed.
®
3.795
[96.4]
package
Step 3
into place
EA1-MG6-USER-M Hardware User Manual, 1st Ed. Rev C, 09/10
Dimensions
4.913
[124.8]
EA 6 COV2
Step 2
Remove the paper backing
from the overlay
Step 4
Remove the protective film*
Chapter 3: Accessories
0.197
[5.0]
0.157
[4.0]
3–15
