Chapter 6: PLC Communications
Cables from AutomationDirect - Wiring Diagrams (cont'd)
Allen-Bradley:

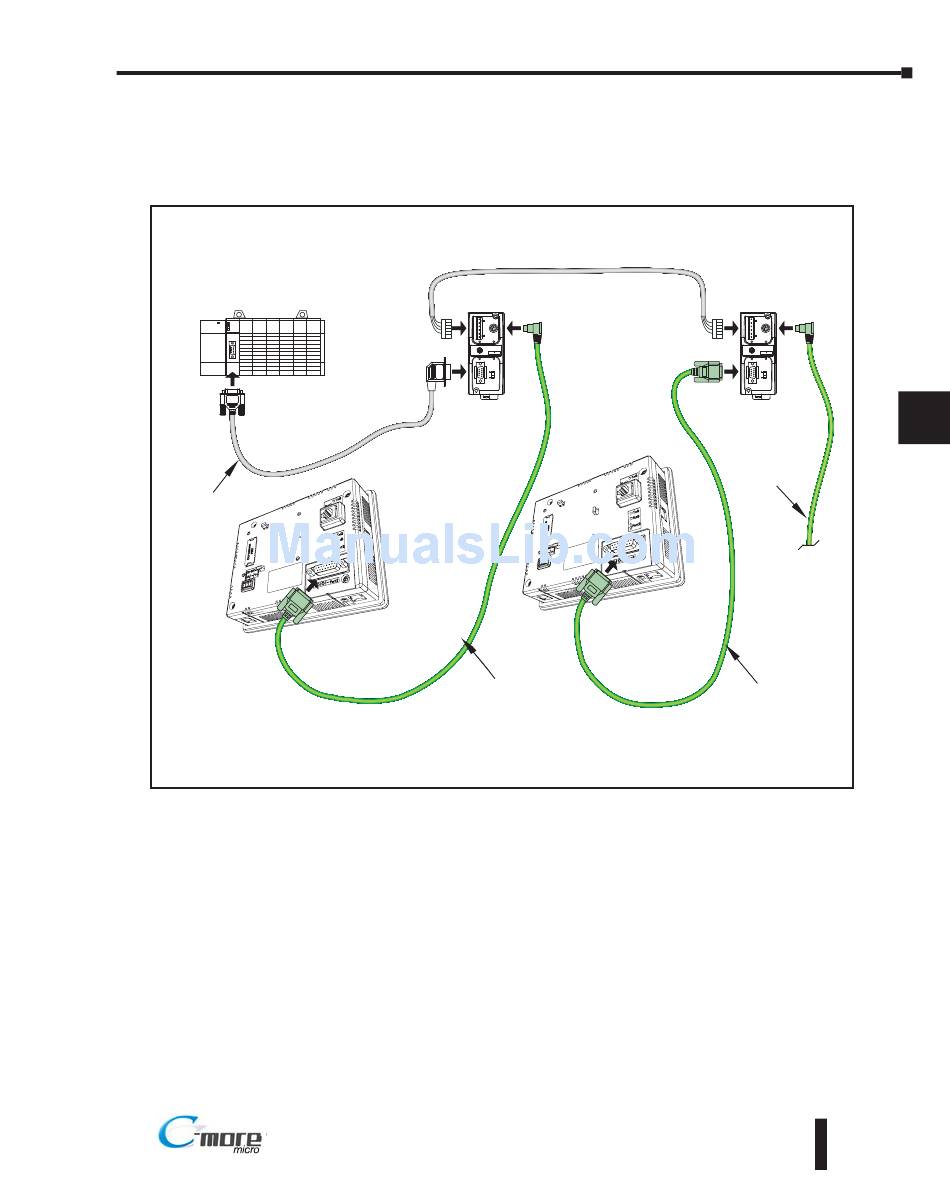

Allen Bradley SLC500™ 5/03 DH 485/AIC to Multiple C-more 6" Micro Graphic Panels
(using C-more cables p/n EA MLOGIX CBL, EA SLC 232 CBL)
Allen-Bradley
DH-485 Link
SLC 5/03 Modular
(See manufacturer's literature for details.)
PLC Controller
Channel 0 must be
set to DH485
6
AB 1761-NET-AIC
AB 1761-NET-AIC
AIC + Advanced
AIC + Advanced
Interface Converter
Interface Converter
C-more
6" Micro-Graphic
Panel
C-more
EA-MLOGIX-CBL
Cable
C-more
AB 1747-CP3
6" Micro-Graphic
RS-232 Cable
Panel
To additional
C-more
Touch Panel
Port2
Port2
C-more
C-more
EA-MLOGIX-CBL
EA-SLC-232-CBL
Cable
Cable
Note: The above diagram shows connecting multiple C-more Micro-Graphic panels to an Allen-Bradley DH485/AIC network using the
AB AIC+ Advanced Interface Converter, p/n 1761-NET-AIC. Select the "Allen-Bradly DH485/AIC SLC500 MircroLogix" driver
in the C-more Micro Programming Software when starting the project. Also, set the AB channel configuration for DH485.
6–23
®
EA1-MG6-USER-M Hardware User Manual, 1st Ed. Rev C, 09/10
