C-more micro EA1-S6ML Hardware User Manual page 69

Wiring Guidelines (cont'd)

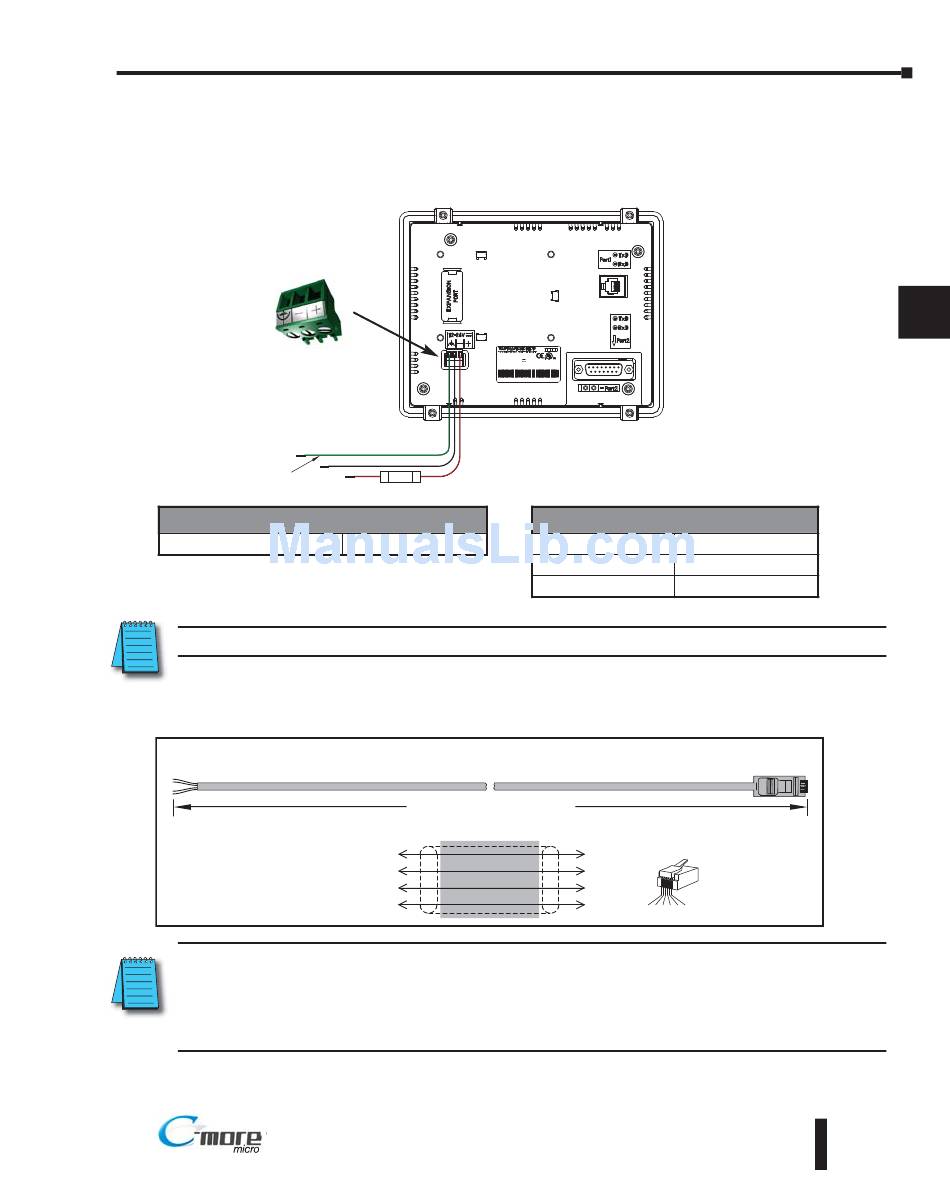

Panel Powered from an external DC Power Supply – Wiring Diagrams
Equipment
Ground
Tightening Torque
Power supply wire connection
NOTE: Recommended DC power supply, AutomationDirect Part No. PSP24-024S or PSP24-024C.
Maximum communication cable length when powered from an external DC Power Adapter
To PLC
Port Connector
NOTE: When the 6" panel is powered through Port1 from a connected PLC or PC, the screen brightness is
diminished because the panel is running in Low-Power Mode. For full brightness, connect an external
12-24 VDC power source to the panel's power connection. Low-Power Mode is intended for initial
programming. For full brightness, connect an external 12-24 VDC power source when the panel is installed
in its application.
®
Recommended
DC Supply Fuse
750 mA fast acting,
ADC p/n AGC-75
GND
–
+
1.7 lb-in (0.2 Nm)
Cable wiring example when power is supplied to panel from
an external DC Power Adapter
50 feet [15.0 m] Maximum
GND
RXD
TXD
GND
EA1-MG6-USER-M Hardware User Manual, 1st Ed. Rev C, 09/10
Chapter 4: Installation and Wiring
0 0 1
MODEL EA1-S6MLW MODEL EA1-S6MLW
I PUT 12 24V 6 5W I PUT 12 24V 6 5W
L S ED L S ED
D te od : * * D te od : * * 8 1
7M 7 7M 7
MADE N CH NA MADE N CH NA ND.CON . Q. ND.CON . Q.
15 9
EA1 S M W + s r al umber EA1 S M W + s r al umber
Supply to Panel:
1 A @ 12 - 24 VDC
(10.8 - 26.4 VDC)
Required Wire Specif ication
Supported temperature
Wire Material
Wire Size
Wiring Diagram
1
GND
3
RXD
4
TXD
6
GND
Over 60 °C
Copper
16 - 22 AWG
To C-more
Micro-Graphic
Serial Port 1
RJ12 6-pin
Phone Plug
1 = Sig GND
(6P6C)
2 = do not use
3 = RXD
4 = TXD
5 = +5 VDC
6 = Sig GND
1 2 3 4 5 6
4
4–7
