Chapter 6: PLC Communications

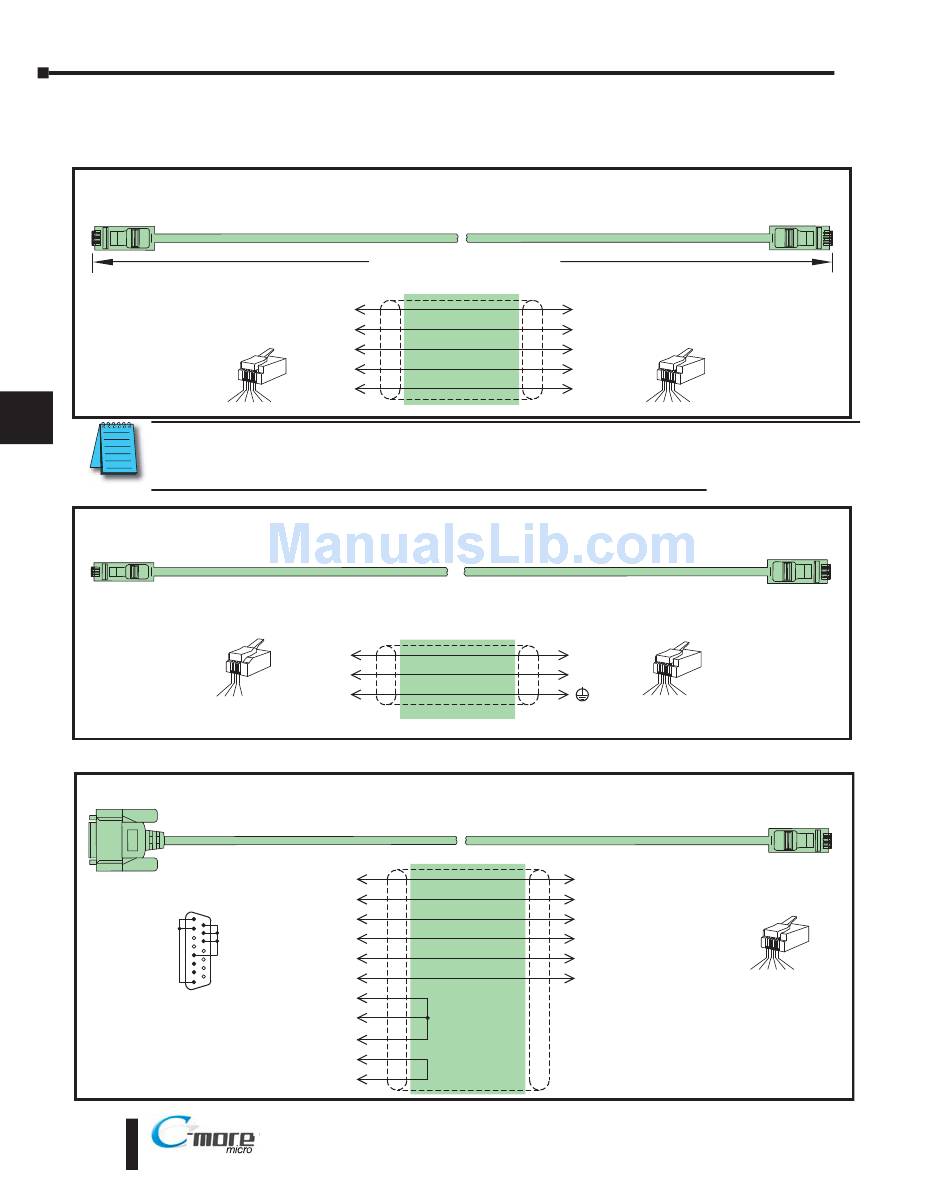

Cables from AutomationDirect – Wiring Diagrams (cont'd)
Power Supplied to Panel through Cable from CLICK and Direct Logic PLC RJ12 port:
To PLC
RJ12 Port
1 = Sig GND
2 = +5 VDC
3 = RXD
4 = TXD
5 = not used
6 = Sig GND
6
Note: Only one C-more Micro-Graphic panel can be powered by an AutomationDirect PLC. If connecting
C-more Micro-Graphic panels to more than one port on and AutomationDirect PLC, the additional panel
must use an external power supply.
To PLC
RJ11 Port
1 = RXD
2 = TXD
3 = do not use
4 = Sig GND
Note: Use the above wiring diagram if you need to make your own cable. We recommend using 22 AWG shielded cable.
To DL405 PLC
Port 0
15-pin
D-sub
8 = YOM Sense
(male)
7 = CTS
6 = do not use
5 = do not use
4 = Online
3 = RXD (232C)
2 = TXD (232C)
1 = YOP Sense
1
See PLC user manual
for pin out details.
6–20
DL05, DL105, DL205, DL350, DL450, H2-WINPLC
RS-232C (p/n DV-1000CBL)
10 feet [3.0 m] Maximum
6
RJ12 6-pin
GND
Phone Plug
4
TXD
(6P6C)
3
RXD
2
+5 V
1
GND
1 2 3 4 5 6
Direct Logic PLC RJ11 port: D3-340 Port 1 & 2
RS-232C (p/n OP-3CBL-1)
RJ11 4-pin
Phone Plug
(4P4C)
1
RXD
2
TXD
4
GND
1 2 3 4
DirectLogic DL405 PLC Port 0: DL-450 Port 0
RS-232C (p/n D4-1000CBL)
15
GND
11
15 = Logic GND
14 = Logic GND
3
15
RXD
13 = Logic GND
2
12 = do not use
TXD
11 = do not use
12
10 = do not use
14
9 = do not use GND
1
YOP
7
CTS
8
YOM
4
13
®
EA1-MG6-USER-M Hardware User Manual, 1st Ed. Rev C, 09/10
Wiring Diagram
1
GND
3
RXD
4
TXD
5
+5 V
6
GND
Wiring Diagram
4
TXD
3
RXD
1
Wiring Diagram
6
GND
5
5V
4
TXD
3
RXD
2
1
GND
DV-1000CBL
To C-more
Micro-Graphic
Serial Port1
RJ12 6-pin
Phone Plug
1 = Sig GND
(6P6C)
2 = not used
3 = RXD
4 = TXD
5 = +5 VDC
6 = Sig GND
1 2 3 4 5 6
OP-3CBL-1
To C-more
Micro-Graphic
Serial Port1
RJ12 6-pin
Phone Plug
(6P6C)
1 = Sig GND
2 = not used
3 = RXD
4 = TXD
5 = +5 VDC
6 = Sig GND
1 2 3 4 5 6
D4-1000CBL
To C-more
Micro-Graphic
Serial Port1
RJ12 6-pin
Phone Plug
1 = GND
(6P6C)
2 = do not use
3 = RXD
4 = TXD
5 = +5 VDC
6 = GND
1 2 3 4 5 6
