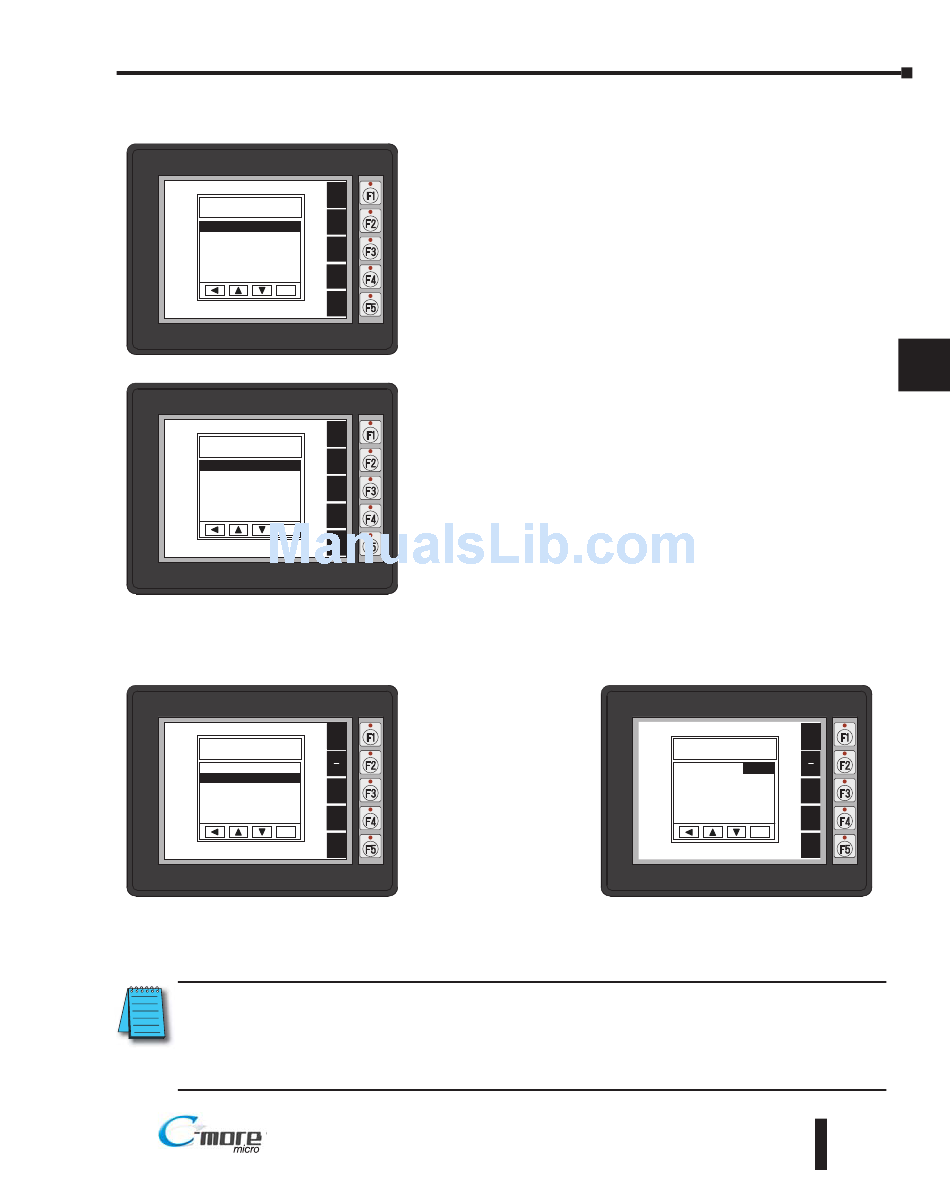

Setting Menu

SETTING

1 LCD Contrast

2 Backlight
3 Beep

4 Calibration

5 Clear User Memory

6 Reset to Factory Default

SETTING
7 Hourglass
8 Rotation
Setting – LCD Contrast
SETUP MENU
1 Information
2 Setting
3 Test Menu
4 Exit
NOTE: When the panel is powered through Port1 from a connected PLC or PC, the screen brightness is
diminished because the panel is running in Low-Power Mode. For full brightness, connect an external
12-24 VDC power source to the panel's power connection. Low-Power Mode is intended for initial
programming. For full brightness, connect an external 12-24 VDC power source when the panel is installed
in its application.
®
Use the UP [F3] and DWN [F4] function keys to scroll
through the list of settings. There are six selections on the
BAK
first screen and two additional selections on a second screen.
You can also use the NXT [F2] function key to go back and
NXT
>
>
forth between the two screens without having to use the up
>
UP
>
and down keys. The BAK [F1] function key will return you
DWN
to the previous screen. Use the ENT [F5] function key to
ENT
ENT make your selection once you have the setting highlighted.
The Setting screen includes the following:
LCD Contrast - page 5-7
Backlight – page 5-8 to 5-9
Beep – page 5-10
BAK
Calibration – page 5-11
NXT
>
Clear User Memory – page 5-12
>
UP
Reset to Factory Default – page 5-12
DWN
Hourglass – page 5-13
ENT
ENT
Rotation – page 5-14
With LCD Contrast
highlighted, press
ENT [F5] to bring
BAK
up the screen
>
showing the current
>
>
UP
>
value. The default is
DWN
8. The contrast can
ENT
be adjusted between
ENT
1 and 16, with 1
being the least
contrast and 16
being the greatest.
EA1-MG6-USER-M Hardware User Manual, 1st Ed. Rev C, 09/10
Chapter 5: System Setup Screens

LCD CONTRAST

Current Value 8
ENT
5
BAK
UP
DWN
APL
5–7
