Communications Ports - C-more micro EA1-S6ML Hardware User Manual

Chapter 2: Specifications

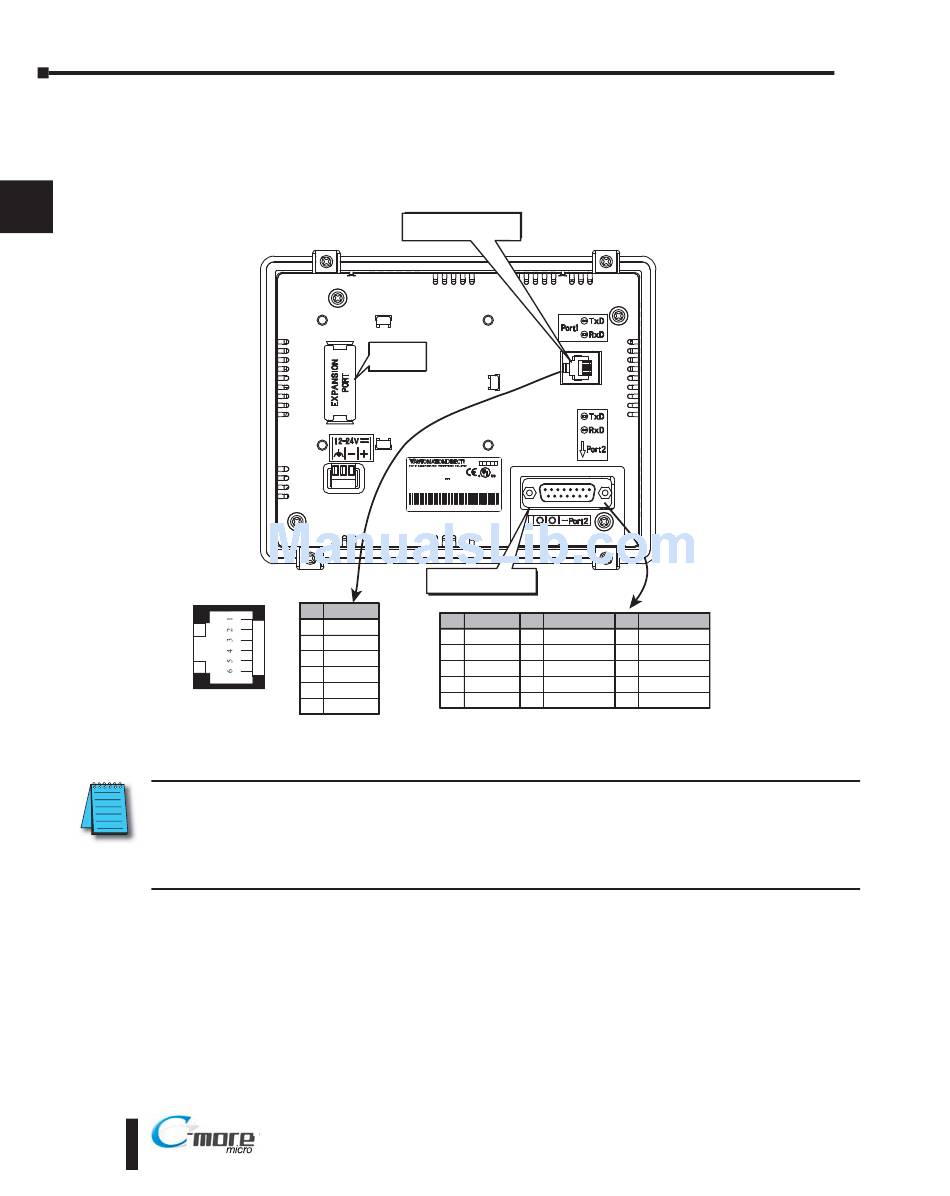

Communications Ports

2
NOTE: The panel has one built-in RJ12 serial communications port (Port1 - RS-232) and one 15-pin serial
communications port (Port2 - RS-232/422/485). Only one of the ports can be used with a connected PLC.
The programming software allows the user to select either Comm. Port1 or Comm. Port2 under the Panel
Manager dialog box. When using Port2 to communicate with the connected PLC, Port1 can still be used with
the EA-MG-PGM-CBL Software Programming Cable Assembly to transfer projects between the PC and panel.
2–6
communications Port1
Expansion
Connector
MODEL:EA1 S6MLW MODEL:EA1 S6MLW
INPUT:12-24V 6.5W INPUT:12-24V 6.5W
Date code:**** Date code:****
MADE IN CHINA MADE IN CHINA
EA1-S6MLW + ser al number EA1-S6MLW + ser al number
communications Port2
Pin Signal
1 Logic GND
2 not used
3 RXD (232C)
4 TXD (232C)
5 +5 VDC
6 Logic GND
RS-232
® EA1-MG6-USER-M Hardware User Manual, 1st Ed. Rev C, 09/10
RJ12 serial
R01 R01 1 2 3 4 5
IS ED IS ED
8 1
7M17 7M17
IND CONT EQ. IND CONT EQ.
15 9
PLC 15-pin serial
Pin Signal Pin Signal
1 Frame GND 6 LE
2 TXD (232C) 7 CTS (232C)
3 RXD (232C) 8 RTS (232C)
4 Future 9 RXD+ (422/485)
5 Logic GND 10 RXD (422/485)
RS-232/422/485
Pin Signal
11 TXD+ (422/485)
12 TXD (422/485)
13 Term Resistor
14 do not use
15 do not use
