Chapter 3: Accessories

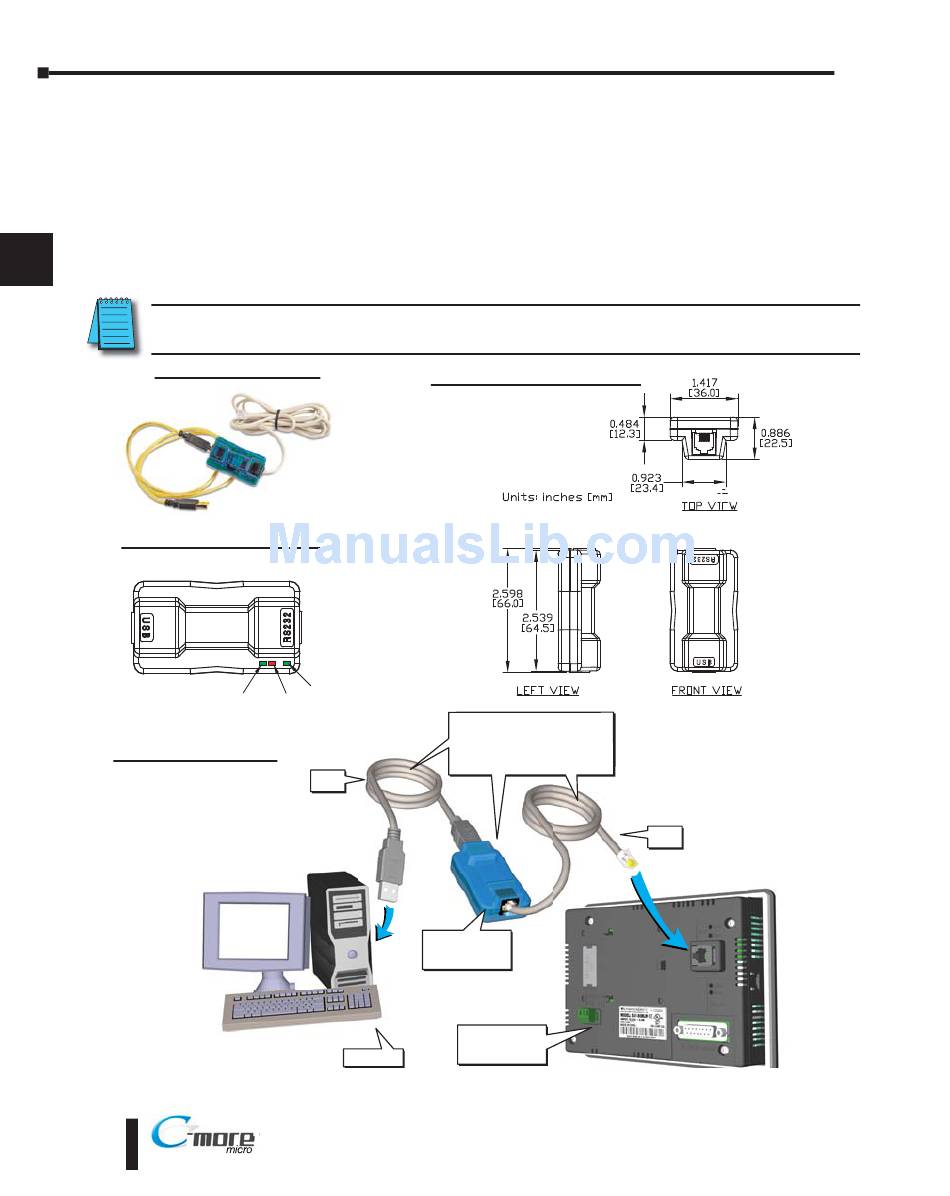

USB to RS-232 Programming Cable Assembly

Using the C-more Micro-Graphic Programming Software for project development, the
C-more 6" Micro-Graphic panel can be connected to a PC (personal computer) by using the
USB-to-RS-232 cable assembly, part number EA-MG-PGM-CBL.
• Connect the USB programming cable ( included) from a USB port type A on the PC to the USB type
B port on the converter (included). Next connect the serial programming cable from the converter's
3
RJ12 port to the panel's RJ12 serial port. The panel receives power from the USB port of the PC that
it is connected to through the USB to RS-232 converter assembly.
NOTE: Install C-more Micro-Graphic Programming software before connecting the panel to the PC to ensure
EA-MG-PGM-CBL
Converter Status LEDs
LED Status Indicators
USB Connectivity
USB to RS-232 Programming Cable Assembly continued at top of next page.
3–6
the panel drivers install correctly.
PWR
RxD
TxD
USB
Cable
User PC
® EA1-MG6-USER-M Hardware User Manual, 1st Ed. Rev C, 09/10
Converter Dimensions
PC to Panel Programming
Cable Assembly
(Includes serial & USB cables)
EA-MG-PGM-CBL
USB to RS232
Converter
C-more 6 inch
Micro Graphic
Panel
Serial
Cable
