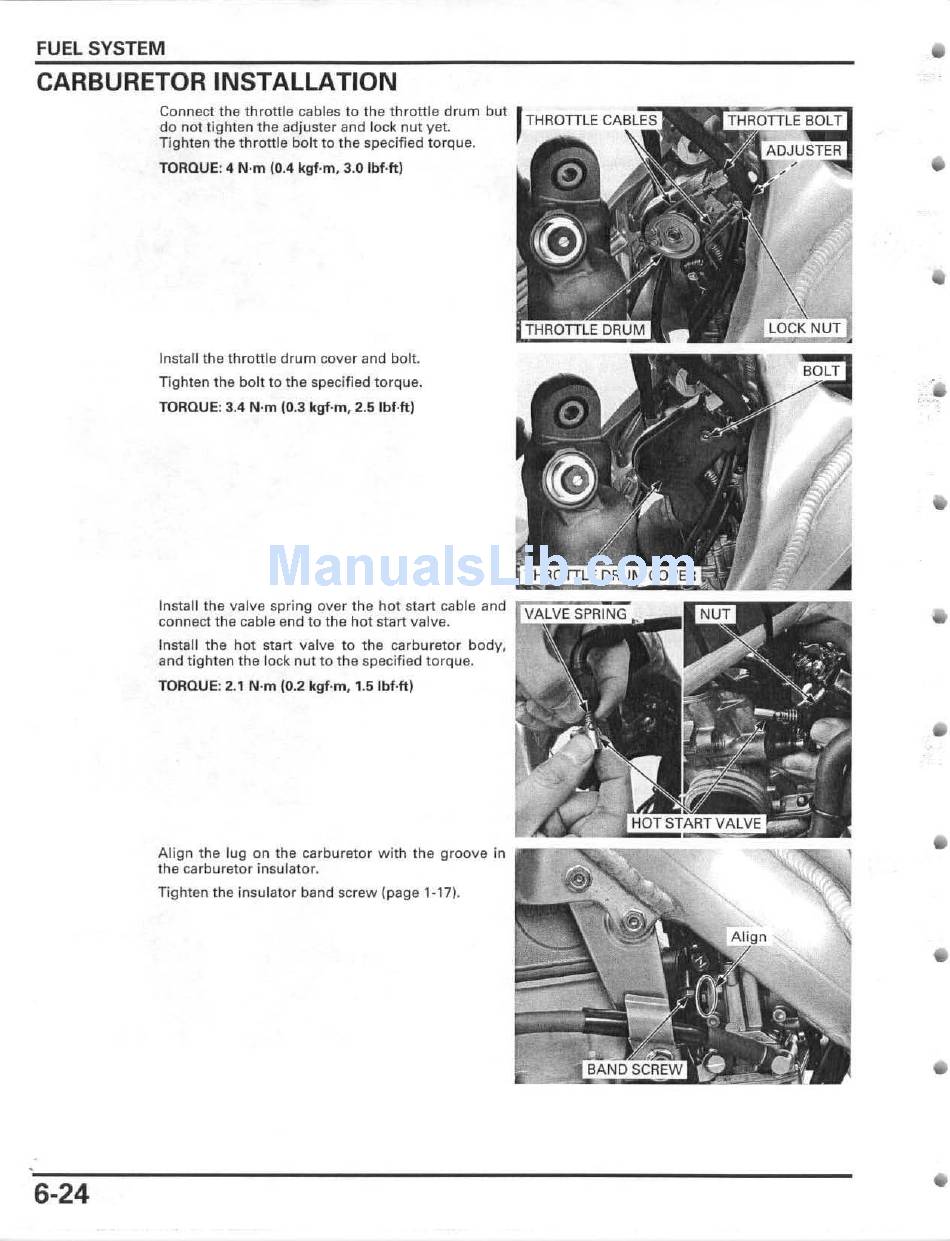

FUEL SYSTEM
CARBURETOR INSTALLATION
6-24
Connect the throttle cables to the throttle drum but
do
not
tighten the adjuster and lock nut yet.
Tighten the th rottle bolt to
the
specified
torque.
TORQUE:
4 N 'm
(0.4
kgf·m
,
3.0
Ibf.ftl
Install
the throttle
d
rum cover and bolt.
Tighten the bolt to the specified
torque.
TORQUE:
3.4 N'm
(0.3 kgf·m,
2.5 Ibf.ft)
Install the valve spring over the hot start cable and
connect the cable end to the
hot
start valve.
Insta
ll
the
hot
start valve to the
carburetor
body,
and tigh
t
en the lock nut to
the
specified torque.
TORQUE:
2.1
N·m (0.2
kgf·m, 1.5
Ibf.ft)
Align the lug on the carburetor with the groove in
the carburetor
insulator.
Tighten the insulator band screw (page
1-17),
•
•
•
•
•
