REAR WHEEL/SUSPENSION

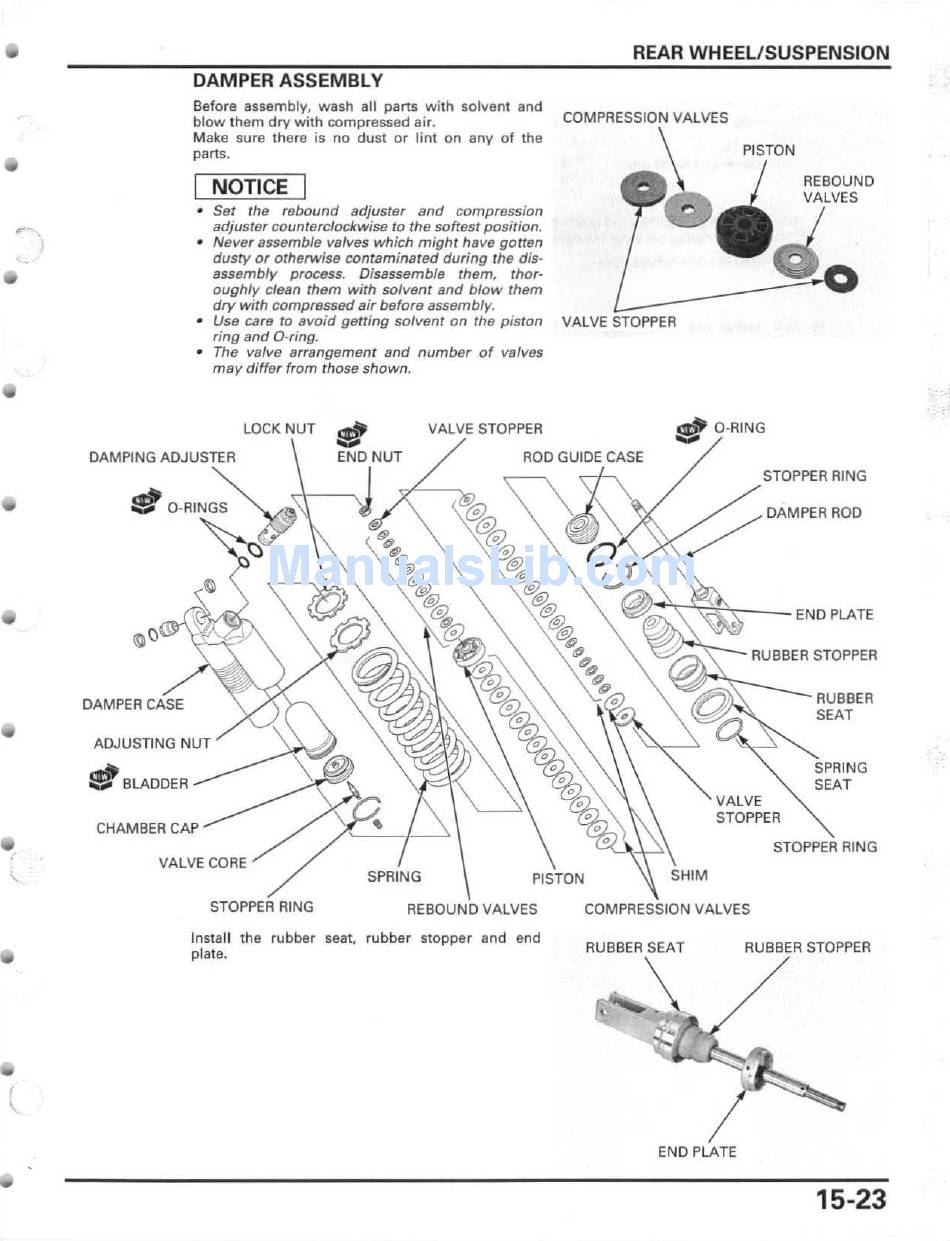

DAMPER ASSEMBLY
Before assembly, wash all parts with solvent and
blow them dry with compressed air.
COIMPf'ESSION VALVES
Make sure there is no dust or lint on any of the
parts.
I
NOTICE
I
• Set the rebound adjuster and compression
adjuster counrerclockwise to the softest position .
.. Never assemble valves which might have gotten
dusty or otherwise contaminated during the
dis-
assembly process. Disassemble them, thor-
oughly clsan them with solvent and blow them
dry with compressed a;r before assembly .
.. Use
care
to
avoid gerring solvent on the piston
VALVE
ring and O-ring .
• The valve arrangement and numbsr of valves
may differ from those shown.
DAMPING ADJUSTER
DAMPER
ADJUSTING NUT
'II
BLADDER
CHAMBER CAP
VALVE CORE
STClPPI'" RING
II!
STOPPER
END NUT
PISTON
".,'UUNUVALVES
Install the rubber seat, rubber stopper and end
plate.
II!
O-R"'G
<"'PP".
RING
DAMPER ROD
~"'~~--END
PLATE
RUBBER STOPPER
VALVE
STOPPER
RUBBER
SEAT
SEAT
STClPP"" RING
COMPRESSION VALVES
RUBBER SEAT RUBBER STOPPER
~\-
END PLATE
15-23
