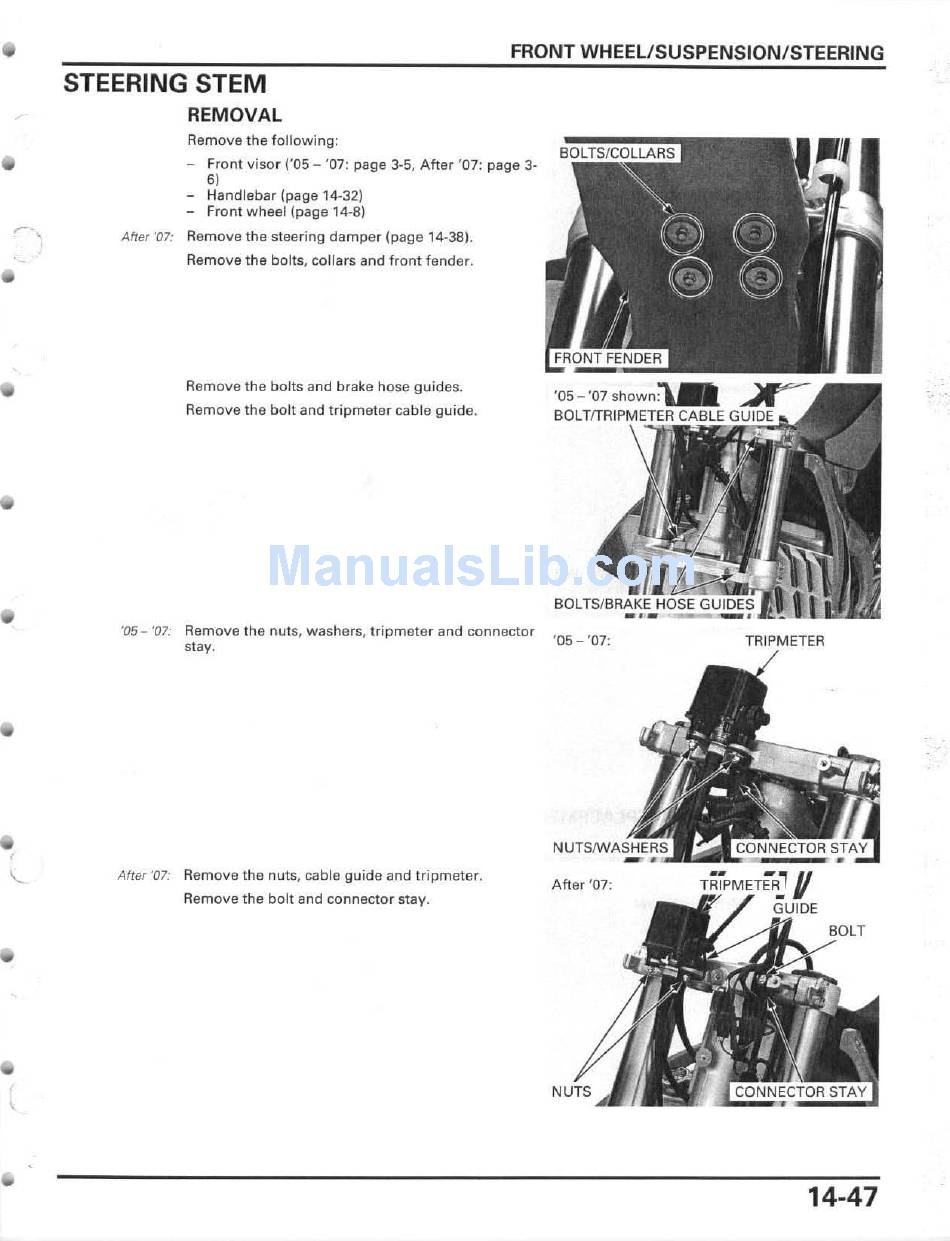

FRONT WHEEL/SUSPENSION/STEERING
STEERING STEM
REMOVAL
Remove the
fol
lowing:
-
Front viso
r
('05
- '07;
page 3-5, After
'07:
page 3-
6)
-
Handlebar
(page 14-32)
-
Front wheel
(page
14-8)
After '07:
Remove
the
steering damper (page
14-38).
Remove the
bolts,
collars and front
fender.
Remove the
bolts
and brake hose guides.
Remove the bolt and tripmeter cable
guide.
'05 -
'07:
Remove the
nuts,
washers,
tripmet
er and
connecto
r
st
ay.
Afrer '07:
Remove the nuts,
cable
guide and
t
ripmeter.
Remove the
bolt
and connector
stay.
'05
- '07
Shown
~
BOL TfTRIPMETER
CABLE GUIDE
'05
- '07:
TRIPMETEA
After
'07:
BOLT
14-47
