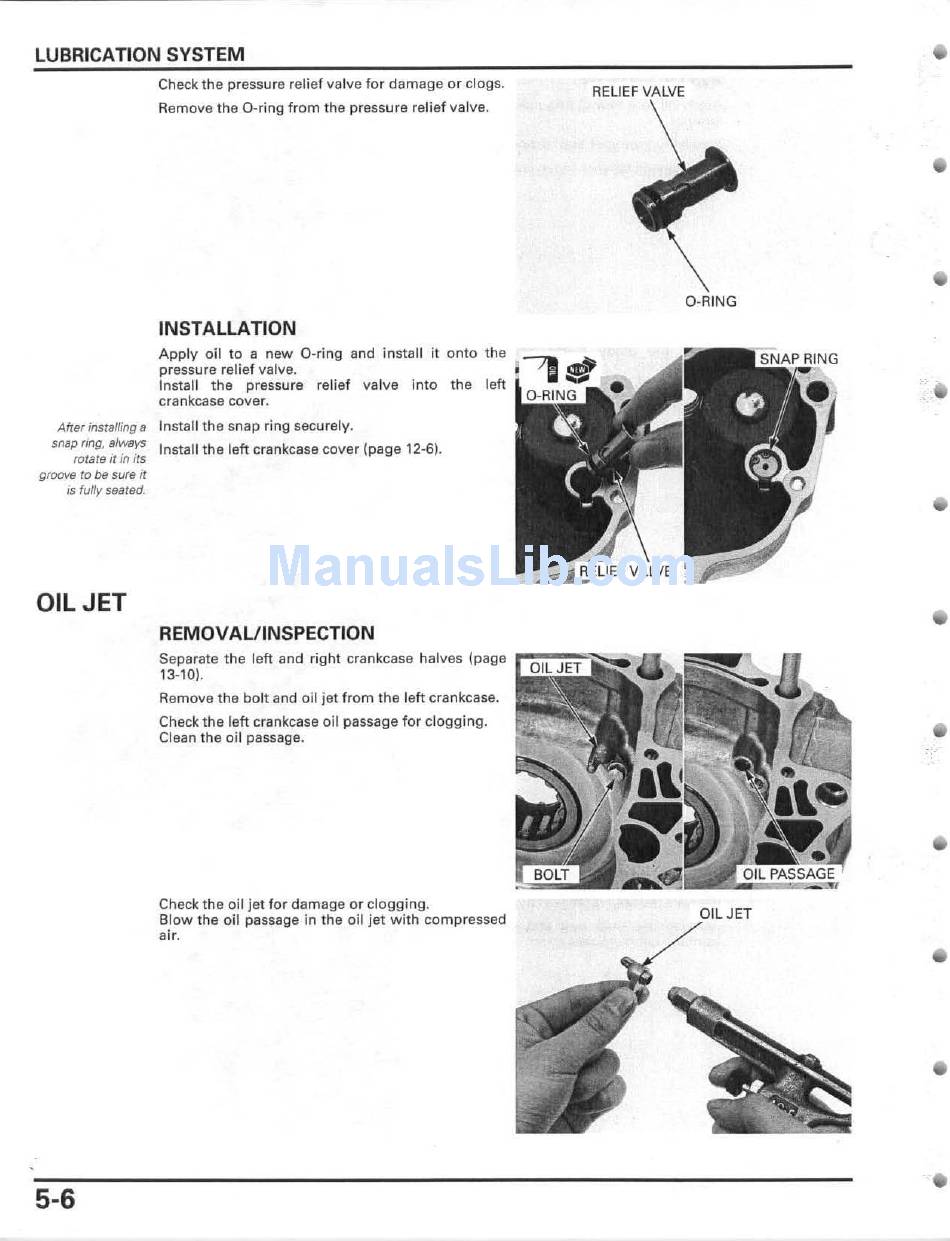

LUBRICATION SYSTEM
Ahar installing 8
snap ring, a/ways
rotate it in its
groove /0
be
sure it
IS fully seated.
OIL JET
5-6
Check the pressure relief valve for damage or clogs.
Remove the O-ring from the pressure relief valve .
INSTALLATION
Apply oil to a new O-ring and install it onto the
pressure relief valve.
Instal l the pressure relief va lve into the left
crankcase cover.
Install the snap ring securely.
Install the left crankcase cover (page 12-6).
REMOVAL/INSPECTION
Separate the left and right crankcase halves (page
,..~~~'O:
13-10).
Remove the bolt and oil jet from the left crankcase.
Check the left crankcase oil passage fo r clogg i ng.
Clean the oil passage.
Check the oil jet for damage or clogging.
Blow the oil passage in the oil jet w ith compressed
air.
OIL JET
•
•
