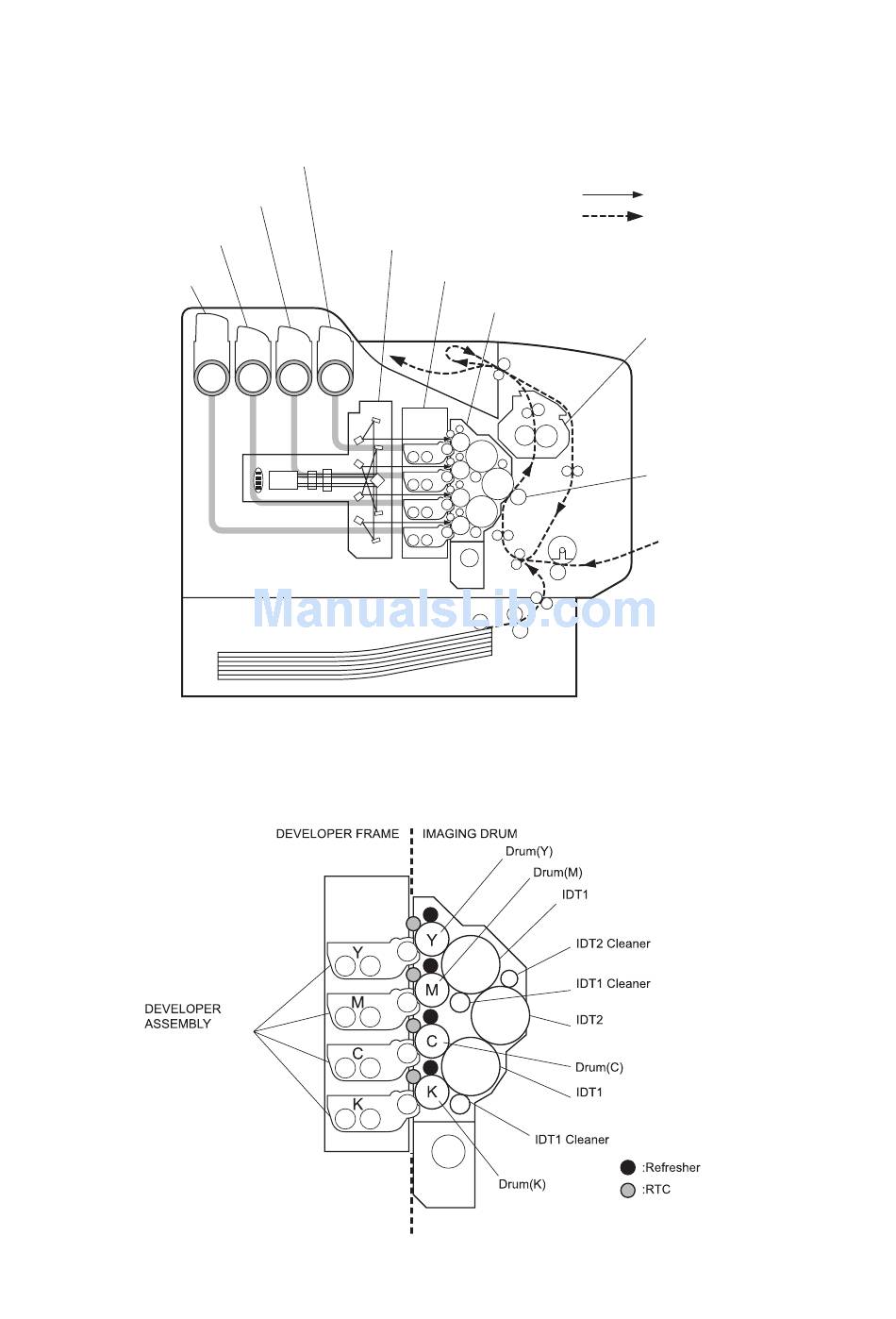

1.2 Schematic Diagram for Printing Processes

Outline of printing processes is shown in the figures below.
MAGENTA TONER
[(3) Development]
CYAN TONER
[(3) Development]
BLACK TONER
[(3) Development]
IMAGING DRUM and DEVELOPER FRAME is integrated major units of printing processes. It is
composed as follows.
[(3) Development]
YELLOW TONER
[(3) Development]
PRINT HEAD [(2) Exposure]
DEVELOPER FRAME
IMAGING DRUM
[(4) Primary transfer]
[(5) Secondary transfer]
[(8) Cleaning]
[(6) Cleaning]
[(5) Primary transfer]
[(7) Secondary transfer]
[(4) Primary transfer]
[(5) Secondary transfer]
[(6) Cleaning]
6 – 2
Chapter 6 Principles of Operation
: Laser beam
: Paper transfer
FUSER
[(10) Fixing]
TRANSFER ROLLER
[(7) Tertiary transfer]
[(11) Cleaning]
Ten06015KA
[(1) Changing
with electricity]
Ten06016KA
