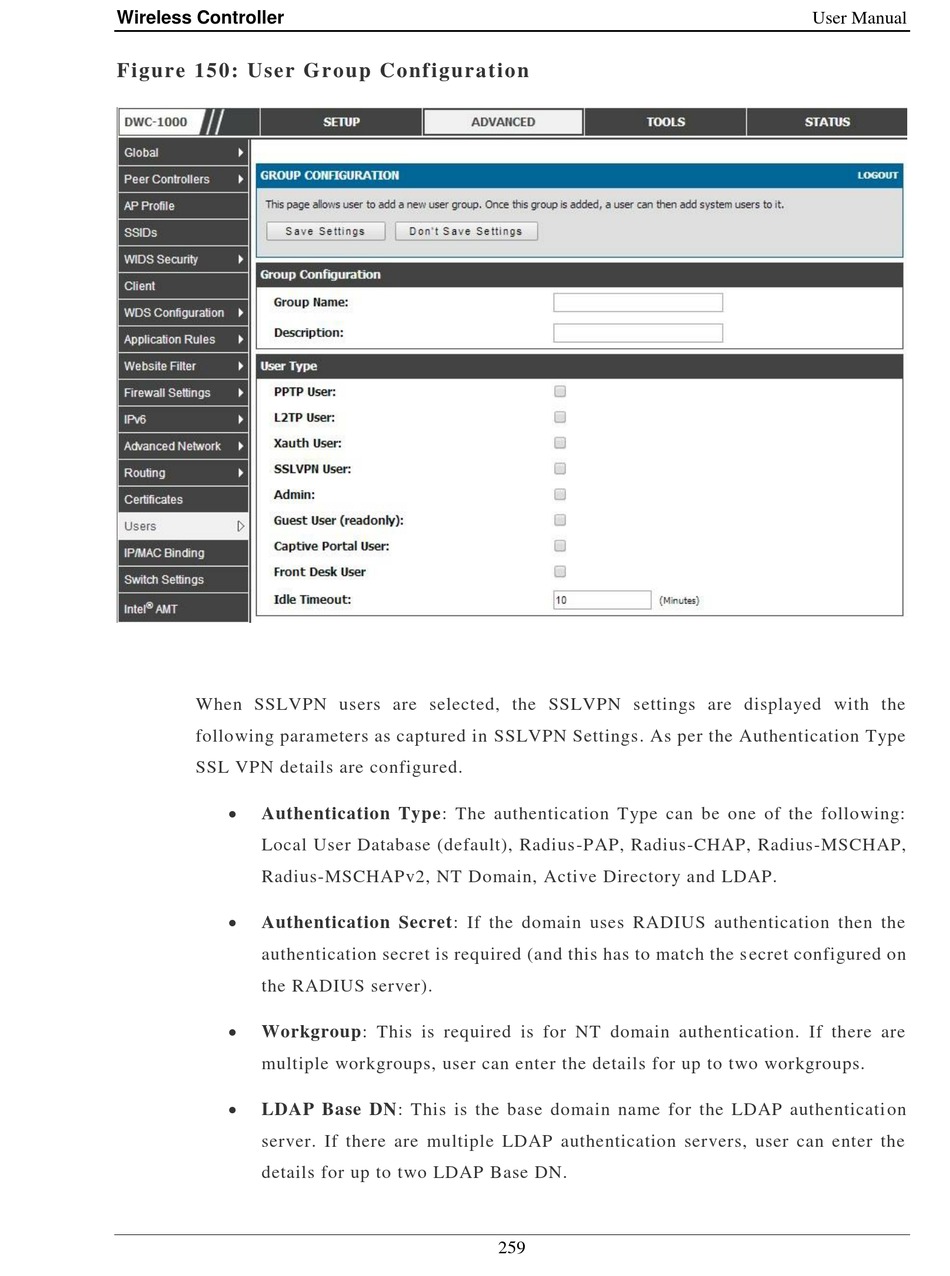

Figure 150: User Group Configuration - D-Link DWC-1000 User Manual

Wireless Controller

Figure 150: User Group Configuration

When SSLVPN users are selected, the SSLVPN settings are displayed with the
following parameters as captured in SSLVPN Settings. As per the Authentication Type
SSL VPN details are configured.

Authentication Type: The authentication Type can be one of the following:
Local User Database (default), Radius-PAP, Radius-CHAP, Radius-MSCHAP,
Radius-MSCHAPv2, NT Domain, Active Directory and LDAP.

Authentication Secret: If the domain uses RADIUS authentication then the
authentication secret is required (and this has to match the s ecret configured on
the RADIUS server).

Workgroup: This is required is for NT domain authentication. If there are
multiple workgroups, user can enter the details for up to two workgroups.

LDAP Base DN: This is the base domain name for the LDAP authenticati on
server. If there are multiple LDAP authentication servers, user can enter the
details for up to two LDAP Base DN.
259
User Manual
