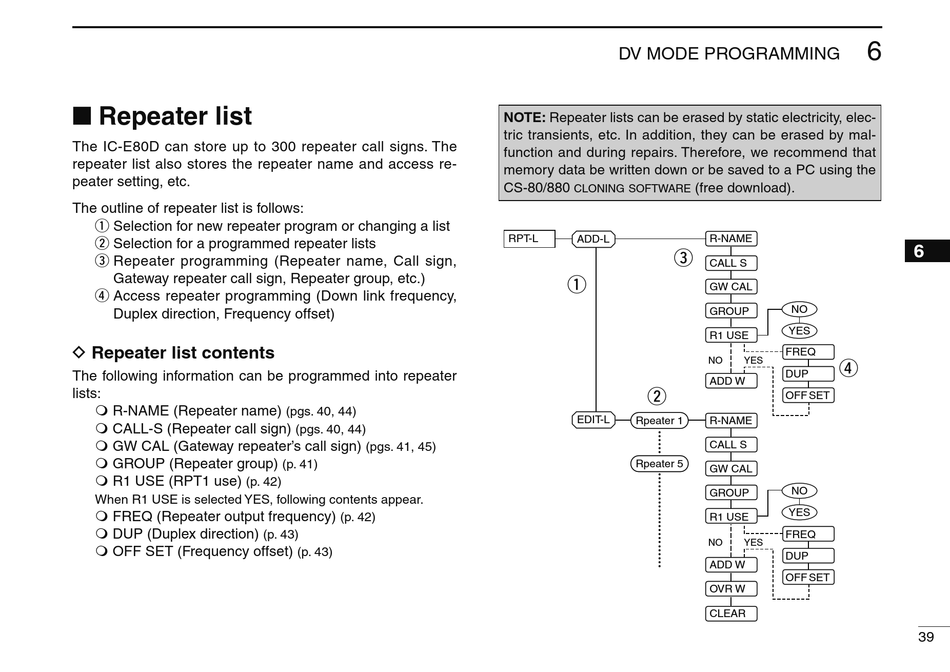

Repeater list

The IC-E80D can store up to 300 repeater call signs. The
repeater list also stores the repeater name and access re-
peater setting, etc.
The outline of repeater list is follows:
q Selection for new repeater program or changing a list
w Selection for a programmed repeater lists
e Repeater programming (Repeater name, Call sign,
Gateway repeater call sign, Repeater group, etc.)
r Access repeater programming (Down link frequency,
Duplex direction, Frequency offset)

D Repeater list contents

The following information can be programmed into repeater
lists:
R-NAME (Repeater name)
CALL-S (Repeater call sign)
GW CAL (Gateway repeater's call sign)
GROUP (Repeater group)
R1 USE (RPT1 use)
(p. 42)
When R1 USE is selected YES, following contents appear.
FREQ (Repeater output frequency)
DUP (Duplex direction)
OFF SET (Frequency offset)
(pgs. 40, 44)
(pgs. 40, 44)
(pgs. 41, 45)
(p. 41)
(p. 42)
(p. 43)
(p. 43)
DV MODE PROGRAMMING
NOTE: Repeater lists can be erased by static electricity, elec-
tric transients, etc. In addition, they can be erased by mal-
function and during repairs. Therefore, we recommend that
memory data be written down or be saved to a PC using the
CS-80/880
CLONING SOFTWARE
RPT-L
ADD-L
e
q
w
EDIT-L
Rpeater 1
Rpeater 5
6
(free download).
R-NAME
CALL S
GW CAL
NO
GROUP
YES
R1 USE
FREQ
NO YES r
DUP
ADD W
OFF SET
R-NAME
CALL S
GW CAL
NO
GROUP
YES
R1 USE
FREQ
NO YES
DUP
ADD W
OFF SET
OVR W
CLEAR
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
39
