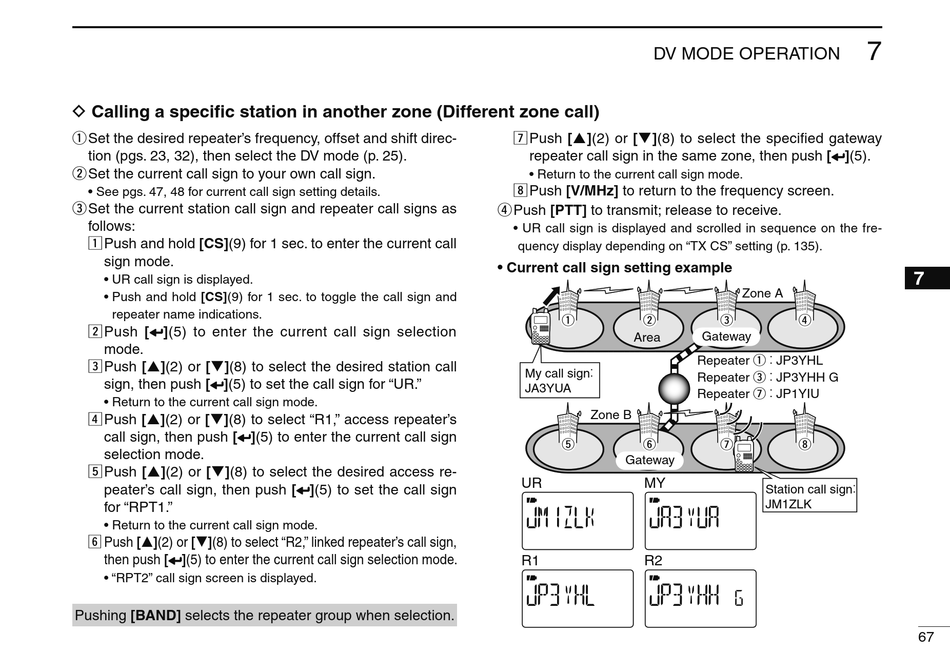

D Calling a specific station in another zone (Different zone call)
q Set the desired repeater's frequency, offset and shift direc-
tion (pgs. 23, 32), then select the DV mode (p. 25).
w Set the current call sign to your own call sign.
• See pgs. 47, 48 for current call sign setting details.
e Set the current station call sign and repeater call signs as
follows:
z Push and hold [CS](9) for 1 sec. to enter the current call
sign mode.
• UR call sign is displayed.
• Push and hold [CS](9) for 1 sec. to toggle the call sign and
repeater name indications.
x Push [ ](5) to enter the current call sign selection
mode.
c Push [ ](2) or [ ](8) to select the desired station call
sign, then push [ ](5) to set the call sign for "UR."
• Return to the current call sign mode.
v Push [ ](2) or [ ](8) to select "R1," access repeater's
call sign, then push [ ](5) to enter the current call sign
selection mode.
b Push [ ](2) or [ ](8) to select the desired access re-
peater's call sign, then push [ ](5) to set the call sign
for "RPT1."
• Return to the current call sign mode.
n Push [ ](2) or [ ](8) to select "R2," linked repeater's call sign,
then push [ ](5) to enter the current call sign selection mode.
• "RPT2" call sign screen is displayed.
Pushing [BAND] selects the repeater group when selection.
DV MODE OPERATION
m Push [ ](2) or [ ](8) to select the specified gateway
repeater call sign in the same zone, then push [ ](5).
• Return to the current call sign mode.
, Push [V/MHz] to return to the frequency screen.
r Push [PTT] to transmit; release to receive.
• UR call sign is displayed and scrolled in sequence on the fre-
quency display depending on "TX CS" setting (p. 135).
• Current call sign setting example
q w
Area
My call sign
JA3YUA
Zone B
t y
Gateway
UR MY
R1 R2
7
Zone A
e r
Gateway
Repeater q JP3YHL
Repeater e JP3YHH G
Repeater u JP1YIU
u i
Station call sign
JM1ZLK
