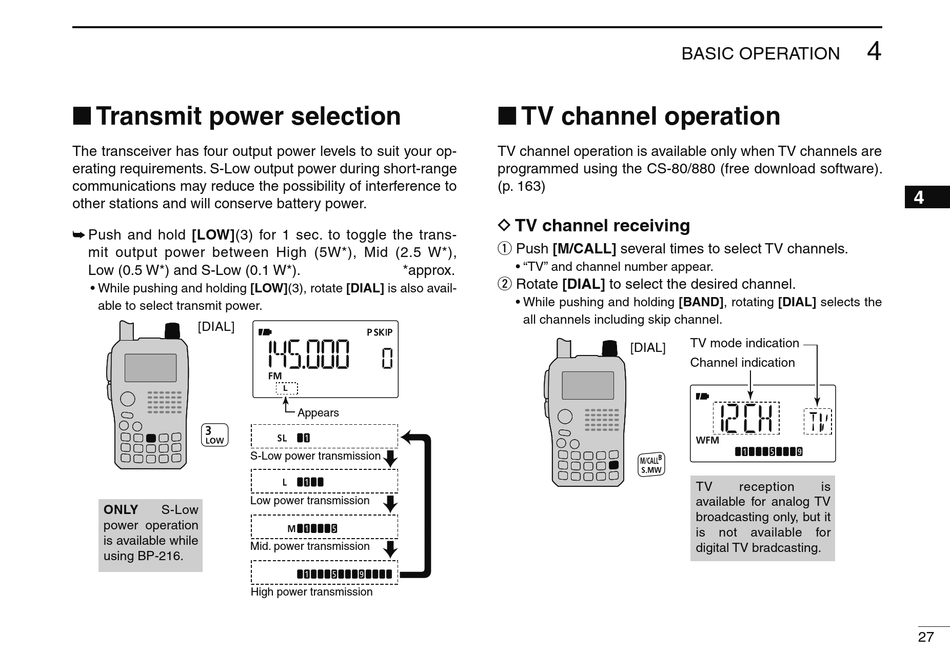

Transmit power selection

The transceiver has four output power levels to suit your op-
erating requirements. S-Low output power during short-range
communications may reduce the possibility of interference to
other stations and will conserve battery power.
Push and hold [LOW](3) for 1 sec. to toggle the trans-
mit output power between High (5W*), Mid (2.5 W*),
Low (0.5 W*) and S-Low (0.1 W*).
• While pushing and holding [LOW](3), rotate [DIAL] is also avail-
able to select transmit power.
[DIAL]
S-Low power transmission
Low power transmission
ONLY S-Low
power operation
is available while
Mid. power transmission
using BP-216.
High power transmission
*approx.
Appears

TV channel operation

TV channel operation is available only when TV channels are
programmed using the CS-80/880 (free download software).
(p. 163)
D TV channel receiving
q Push [M/CALL] several times to select TV channels.
• " TV" and channel number appear.
w Rotate [DIAL] to select the desired channel.
• While pushing and holding [BAND], rotating [DIAL] selects the
all channels including skip channel.
[DIAL]
BASIC OPERATION
TV mode indication
Channel indication
TV reception is
available for analog TV
broadcasting only, but it
is not available for
digital TV bradcasting.
