16
OPTIONS

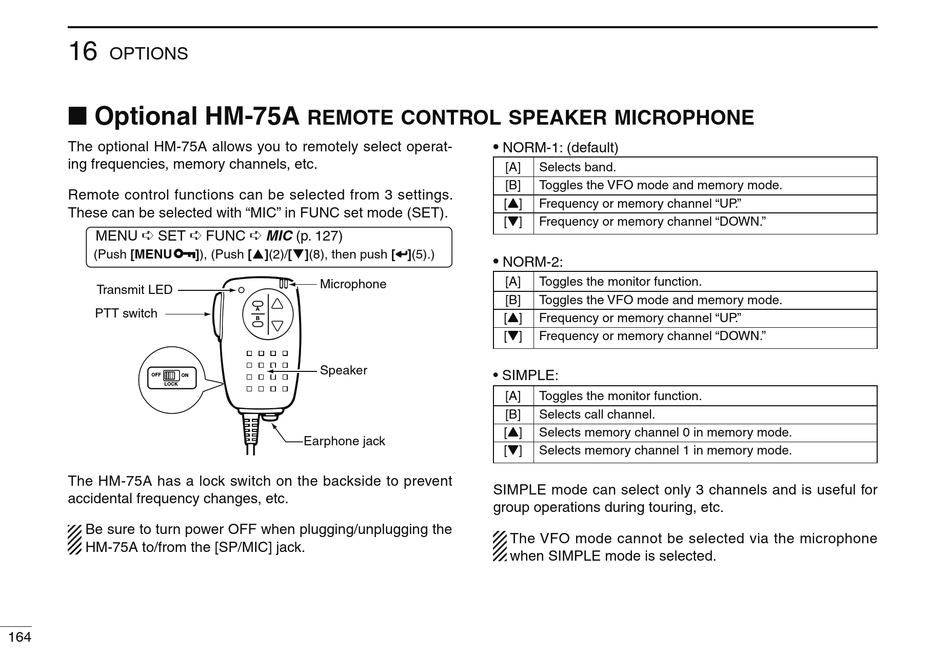

Optional HM-75A

The optional HM-75A allows you to remotely select operat-
ing frequencies, memory channels, etc.
Remote control functions can be selected from 3 settings.
These can be selected with "MIC" in FUNC set mode (SET).
MENU SET
(Push [MENU
Transmit LED
PTT switch
OFF
ON
LOCK
The HM-75A has a lock switch on the backside to prevent
accidental frequency changes, etc.
Be sure to turn power OFF when plugging/unplugging the
HM-75A to/from the [SP/MIC] jack.
164

REMOTE CONTROL SPEAKER MICROPHONE

FUNC MIC (p. 127)
]), (Push [ ](2)/[ ](8), then push [ ](5).)
Microphone
A
B
Speaker
Earphone jack
•
NORM-1: (default)
[A] Selects band.
[B] Toggles the VFO mode and memory mode.
[Y] Frequency or memory channel "UP."
[Z] Frequency or memory channel "DOWN."
•
NORM-2:
[A] Toggles the monitor function.
[B] Toggles the VFO mode and memory mode.
[Y] Frequency or memory channel "UP."
[Z] Frequency or memory channel "DOWN."
• SIMPLE:
[A] Toggles the monitor function.
[B] Selects call channel.
[Y] Selects memory channel 0 in memory mode.
[Z] Selects memory channel 1 in memory mode.
SIMPLE mode can select only 3 channels and is useful for
group operations during touring, etc.
The VFO mode cannot be selected via the microphone
when SIMPLE mode is selected.
