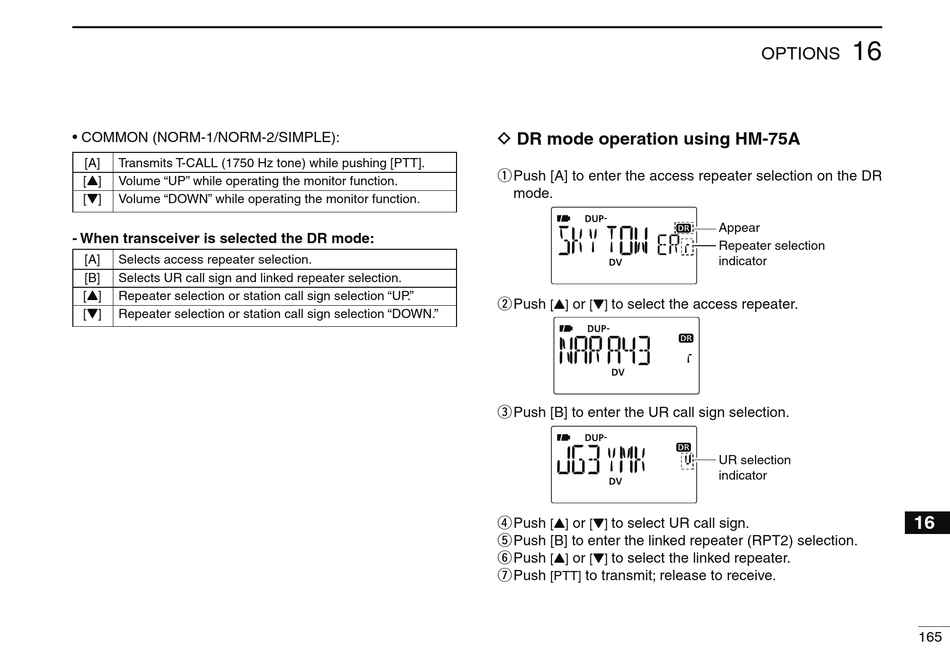

Icom IC-E80D Instruction Manual page 173

• COMMON (NORM-1/NORM-2/SIMPLE):
[A] Transmits T-CALL (1750 Hz tone) while pushing [PTT].
[Y] Volume "UP" while operating the monitor function.
[Z] Volume "DOWN" while operating the monitor function.
- When transceiver is selected the DR mode:
[A] Selects access repeater selection.
[B] Selects UR call sign and linked repeater selection.
[Y] Repeater selection or station call sign selection "UP."
[Z] Repeater selection or station call sign selection "DOWN."
D DR mode operation using HM-75A
q Push [A] to enter the access repeater selection on the DR
mode.
w Push
or to select the access repeater.
[Y] [Z]
e Push [B] to enter the UR call sign selection.
r Push
or to select UR call sign.
[Y] [Z]
t Push [B] to enter the linked repeater (RPT2) selection.
y Push
or to select the linked repeater.
[Y] [Z]
u Push
to transmit; release to receive.
[PTT]
16
OPTIONS
Appear
Repeater selection
indicator
UR selection
indicator
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
165
