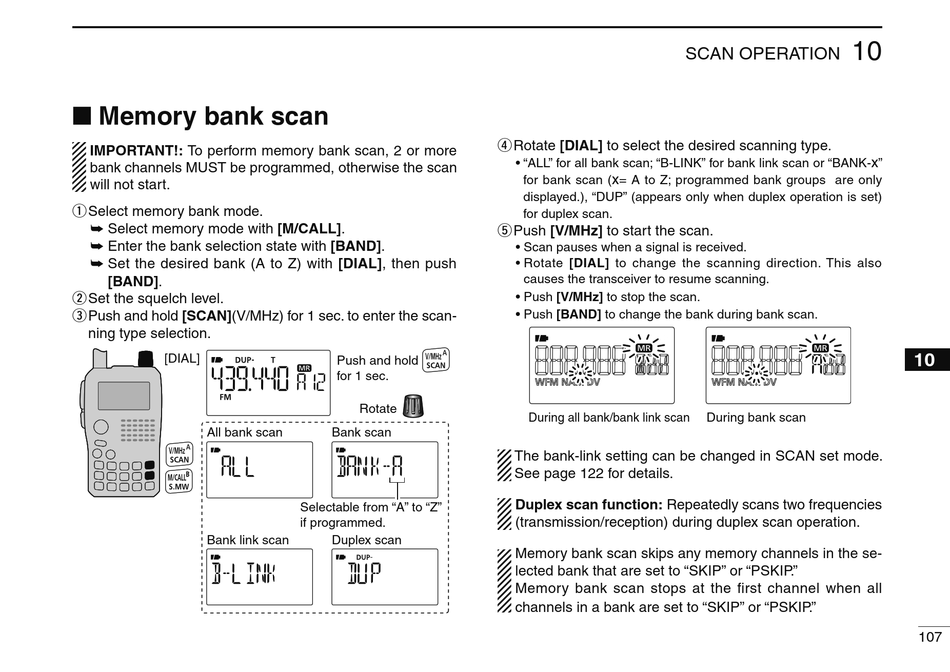

Memory bank scan

IMPORTANT!: To perform memory bank scan, 2 or more
bank channels MUST be programmed, otherwise the scan
will not start.
q Select memory bank mode.
Select memory mode with [M/CALL].
Enter the bank selection state with [BAND].
Set the desired bank (A to Z) with [DIAL], then push
[BAND].
w Set the squelch level.
e Push and hold [SCAN](V/MHz) for 1 sec. to enter the scan-
ning type selection.
[DIAL]
All bank scan
Bank link scan
Push and hold
for 1 sec.
Rotate
Bank scan
Selectable from "A" to "Z"
if programmed.
Duplex scan
r Rotate [DIAL] to select the desired scanning type.
• "ALL" for all bank scan; "B-LINK" for bank link scan or "BANK-
x
for bank scan ( = A to Z; programmed bank groups are only
displayed.), "DUP" (appears only when duplex operation is set)
for duplex scan.
t Push [V/MHz] to start the scan.
• Scan pauses when a signal is received.
• Rotate [DIAL] to change the scanning direction. This also
causes the transceiver to resume scanning.
• Push [V/MHz] to stop the scan.
• Push [BAND] to change the bank during bank scan.
During all bank/bank link scan
The bank-link setting can be changed in SCAN set mode.
See page 122 for details.
Duplex scan function: Repeatedly scans two frequencies
(transmission/reception) during duplex scan operation.
Memory bank scan skips any memory channels in the se-
lected bank that are set to "SKIP" or "PSKIP."
Memory bank scan stops at the first channel when all
channels in a bank are set to "SKIP" or "PSKIP."
10
SCAN OPERATION
During bank scan
