Loading Large Roll OD Media

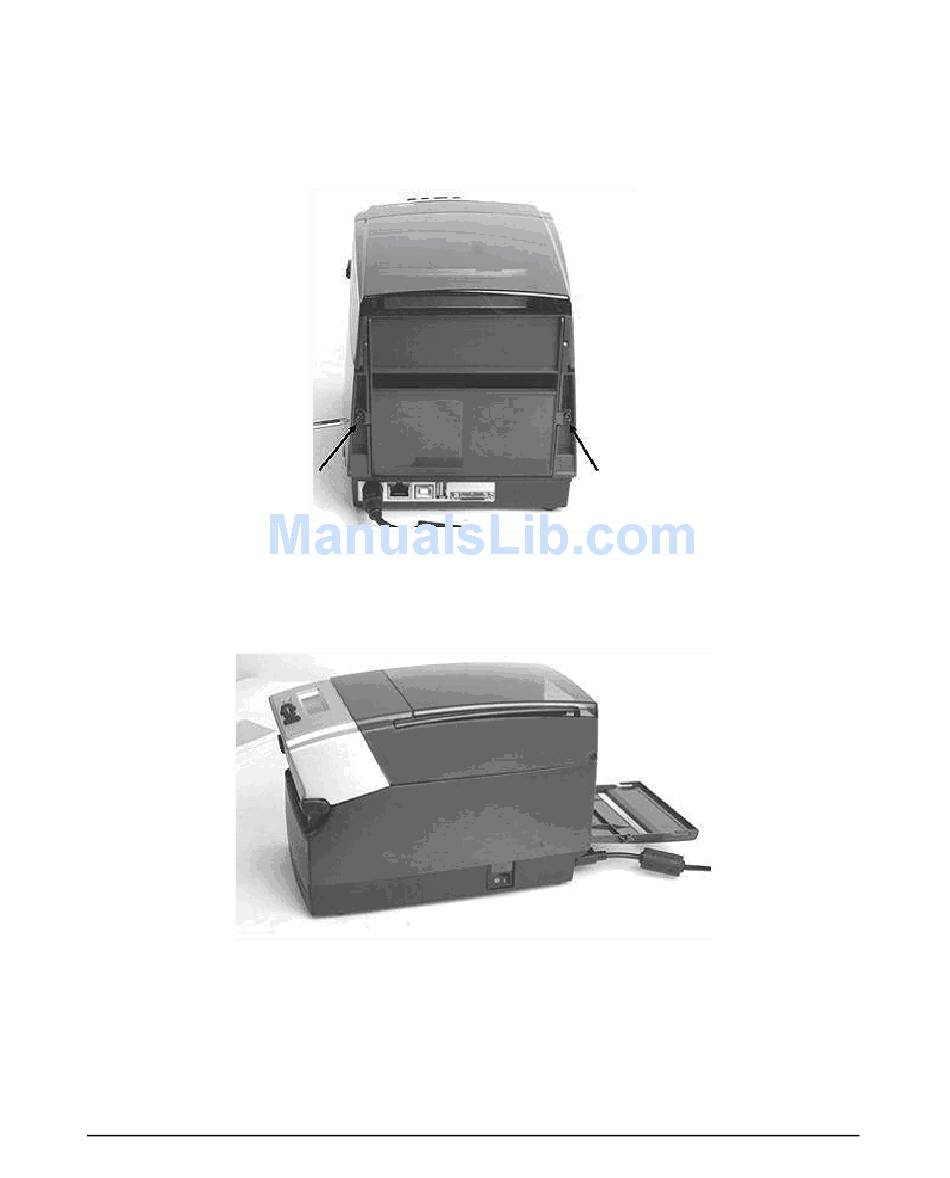

1. Locate the rear door screws at the rear of the printer as identified with the arrows in
Figure 2-54. Remove the screws with a #2 Phillips screwdriver. Keep the screws for
future usage.
Figure 2-54: Rear Door Screws Identified by Arrows
2. Open the rear door and leave it in the position shown in Figure 2-55.
Figure 2-55: Open Rear Door as Shown
G e t t i n g S t a r t e d
2-41
