Tally Dascom 7006 User Manual page 37

8. While holding the ribbon in place, pull gently on the green supply spindle to insert
the ribbon supply roll into place.

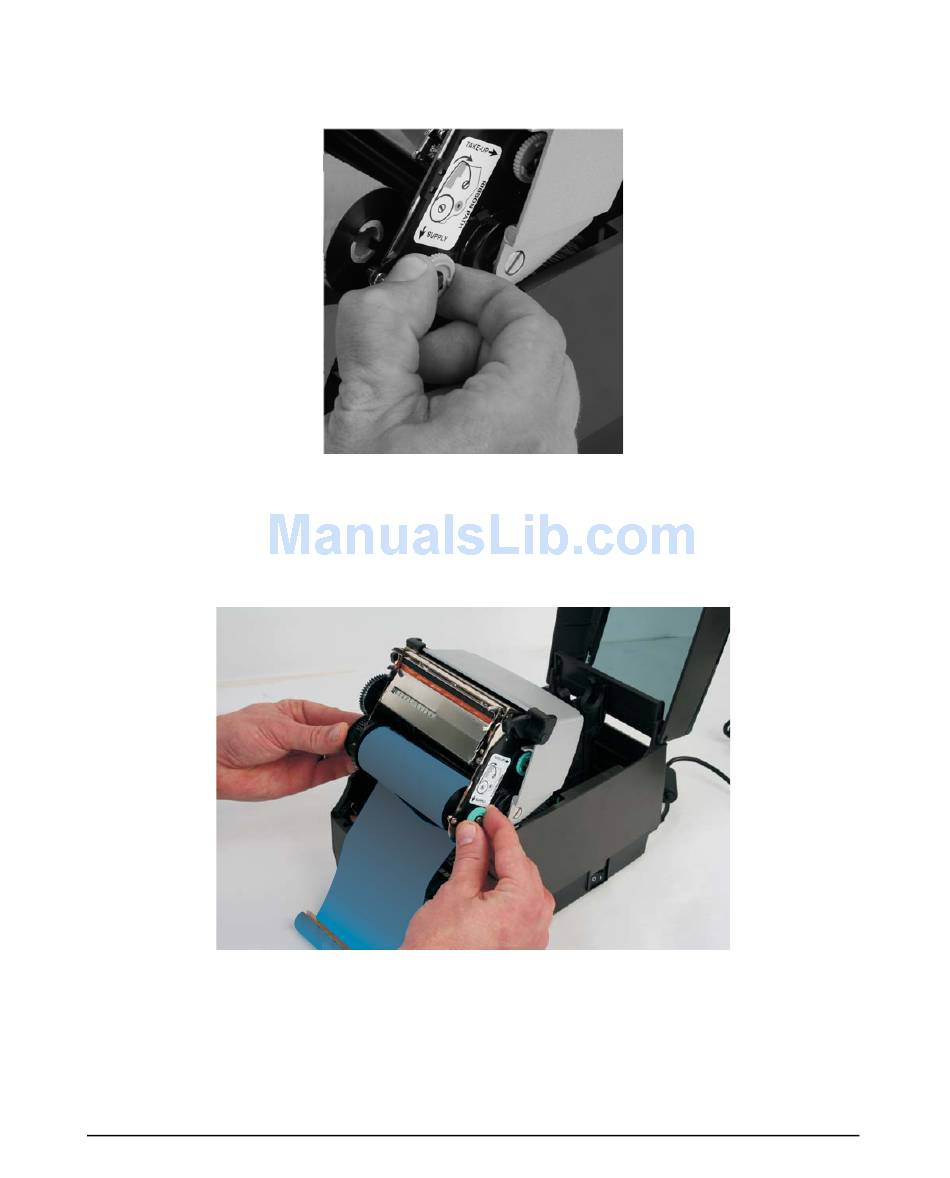

Figure 2-28: Pulling Out the Ribbon Supply Spindle
9. Place the ribbon supply roll into position as shown in Figure 2-29 below. Line up the
notches on the ribbon supply roll with the printer supply spindle tabs to secure the
ribbon supply roll into place.
Figure 2-29: Lining up the Supply Roll Core with the Ribbon Spindle tabs
G e t t i n g S t a r t e d
2-27
