Tally Dascom 7006 User Manual page 34

G e t t i n g S t a r t e d
4. Once the tape is removed, discard the tape, and spread the ribbon out so the text on
the leader A is facing down. Make sure the ribbon does not roll off the table when
setting it down.

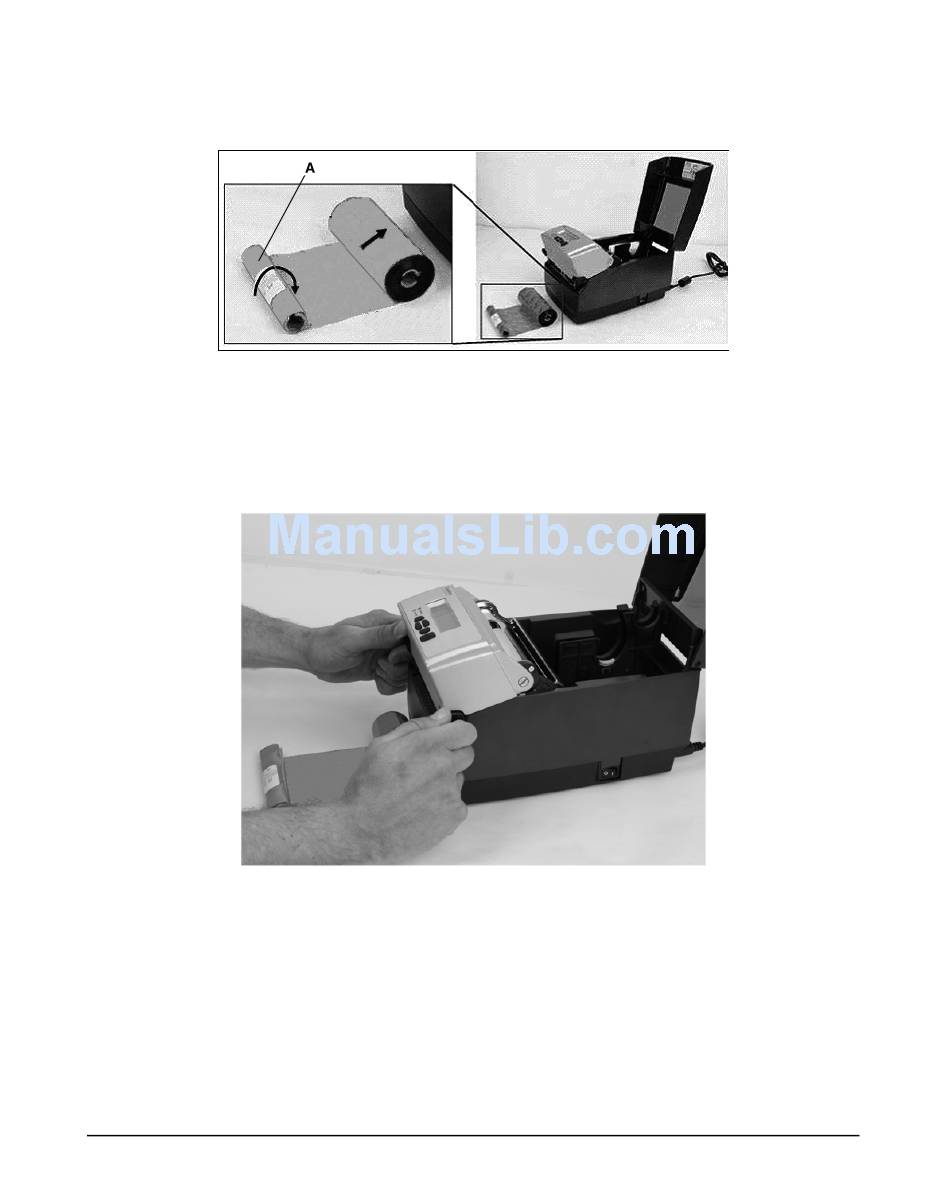

Figure 2-23: Ribbon Layout Before Loading Into the Printer
5. Next, unlatch the printhead mechanism to load the ribbon into the printer. To do
this, pull up on the black latches with both hands. Refer to the figure below to
release the printhead mechanism.
Figure 2-24: Unlatching the Printhead Mechanism
2-24
