Inside the Printer

Device
A – Large roll spindle slot
B – Standard roll spindle slot
C – Cast metal user interface cover
D – Printhead
E – Printhead bracket
F – Ribbon drive gear

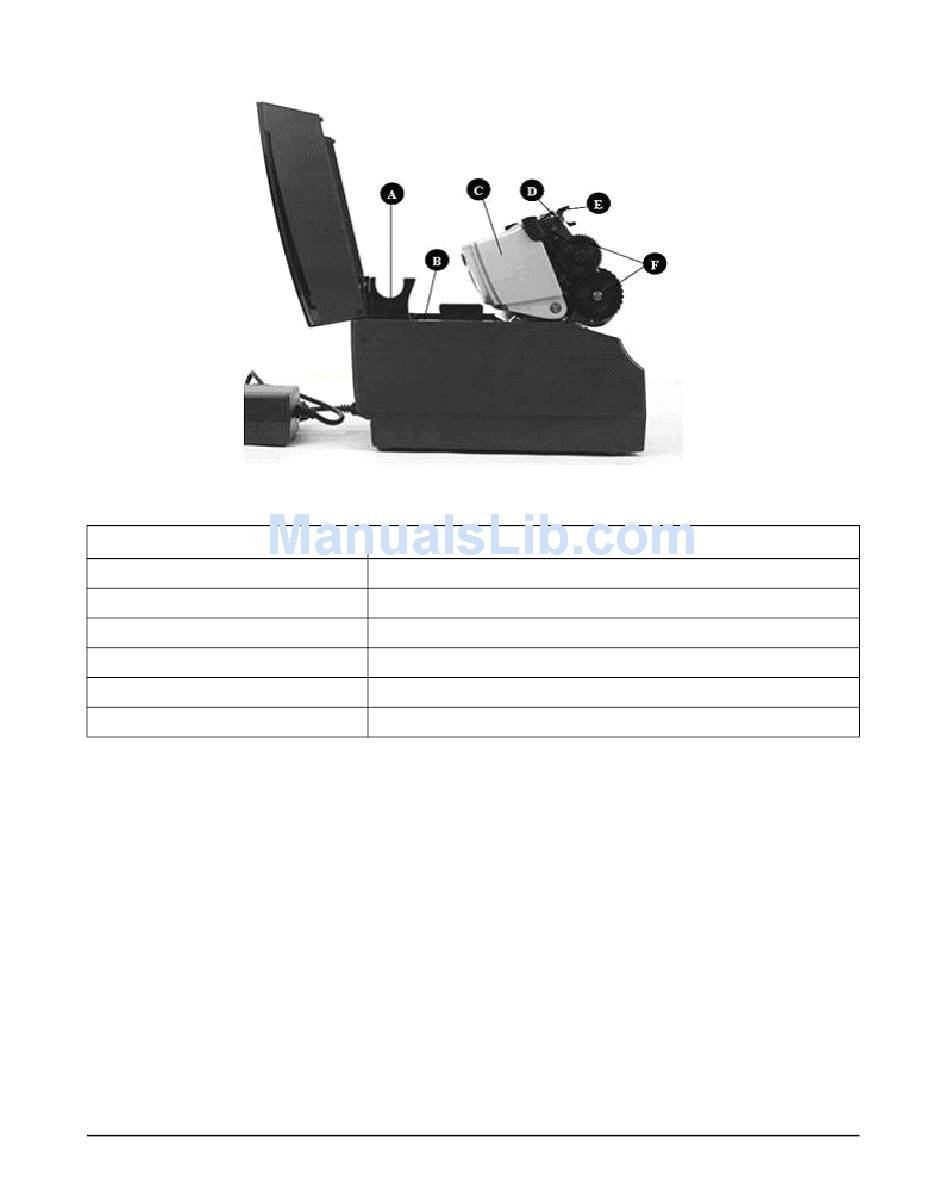

Figure 2-2: Side View
Use
Holds large roll media
Holds standard roll media
Contains user interface buttons
Printing mechanism
Holds the printhead
Feeds ribbon through the printer
