G e t t i n g S t a r t e d

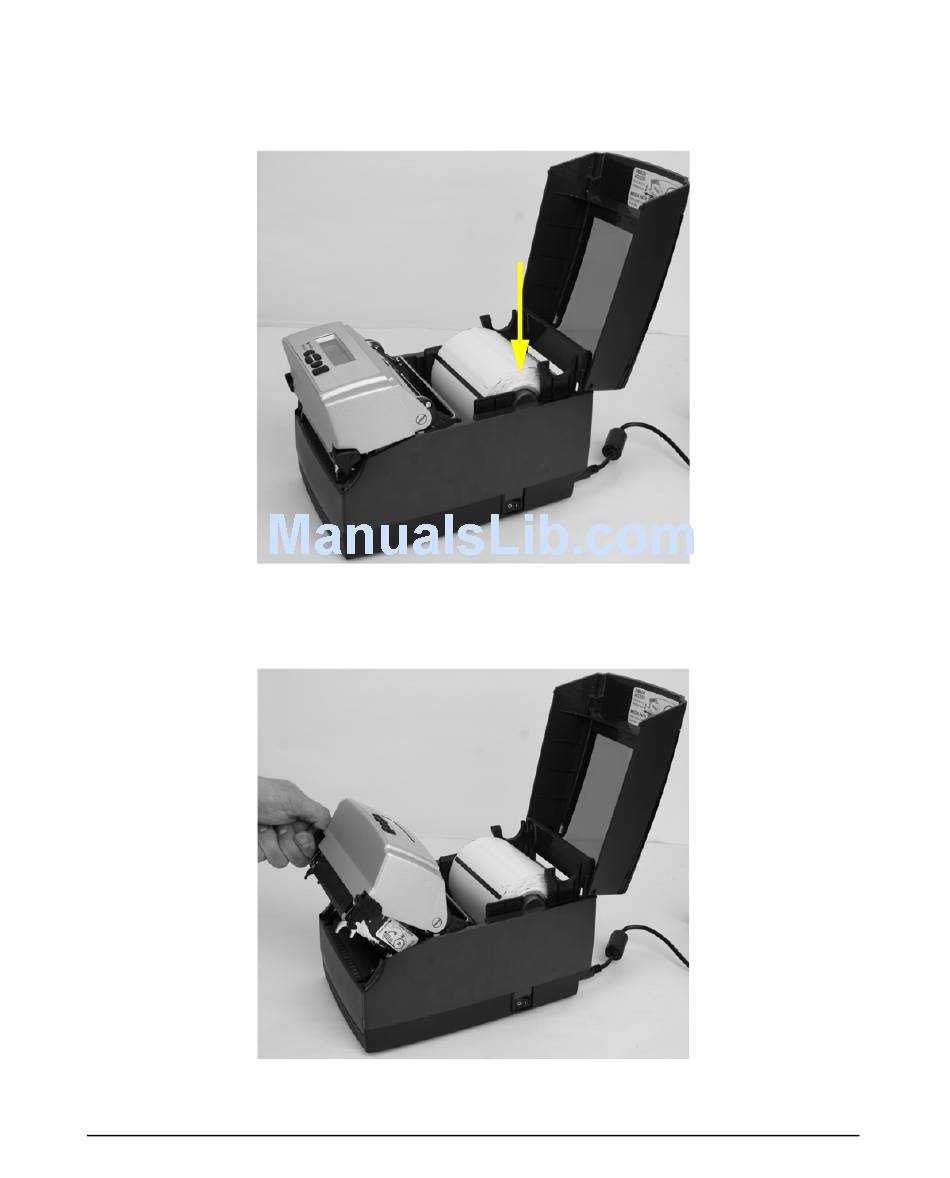

10. Once the guides are against the sides of the roll, push the roll down in the slot as
shown in Figure 2-48. This locks the media guide in the proper position. The media
should look as shown.
Figure 2-48: Push Down on the Right Side of the Roll to Lock the Media Guide
11. Lift the mechanism as shown in Figure 2-49.
2-38
Figure 2-49: Lift the Mechanism
