C l e a n i n g a n d P r e v e n t i v e M a i n t e n a n c e

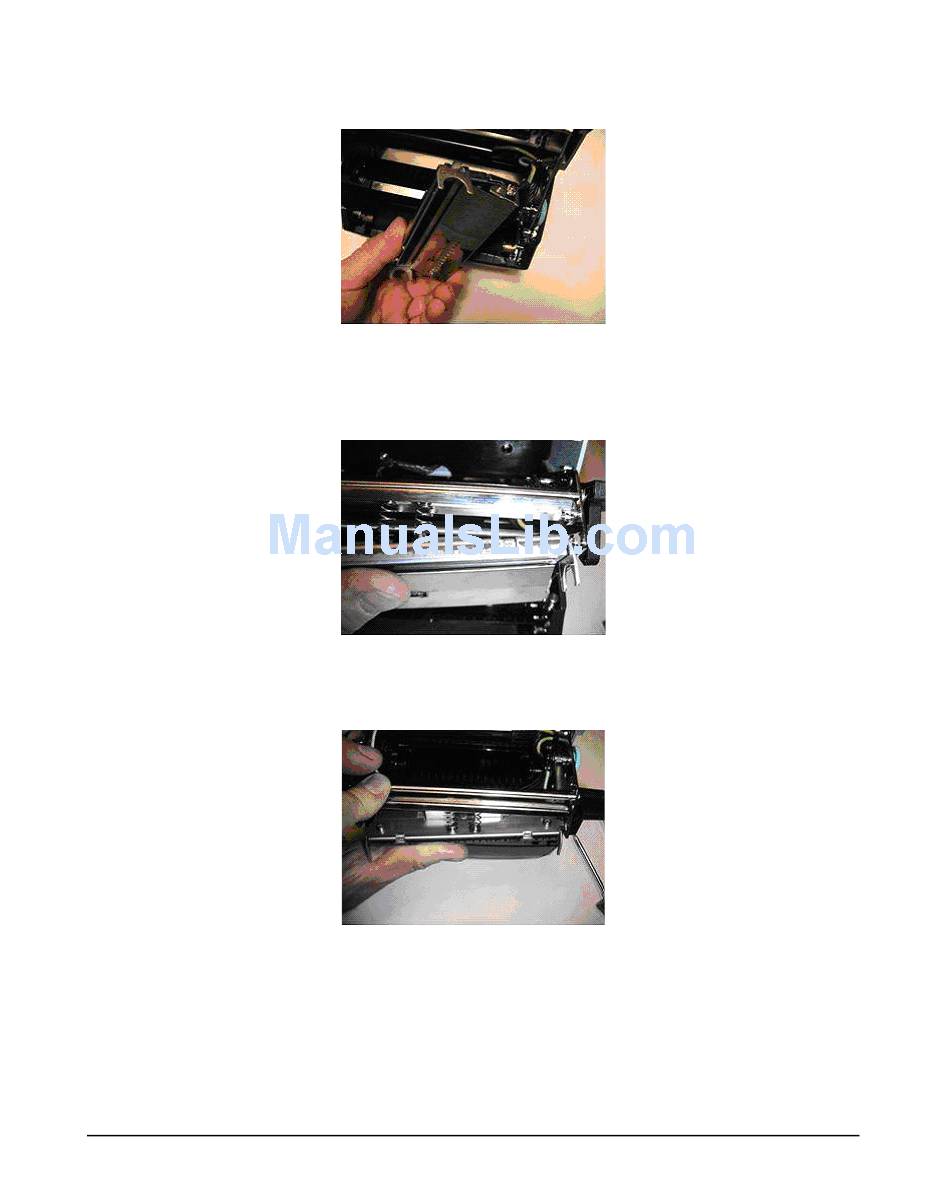

4. Secure the ground wire to the bracket, ensuring that the lock washer is between the
wire lug and the bracket shield. Tighten the screw to 3 in-lbs.
5. Position the springs over the spring guides on the bracket, and then slide the right
printhead bracket support tab over the mechanism right side printhead support
platform feature.
6. Keeping the right side tab on the platform, rotate the left side of the printhead for-
ward so that it clears the left side printhead platform support.
11-6
