Tally Dascom 7006 User Manual page 33

2. Remove the Test Sample from inside the printer, and store it with other documenta-
tion for future reference.

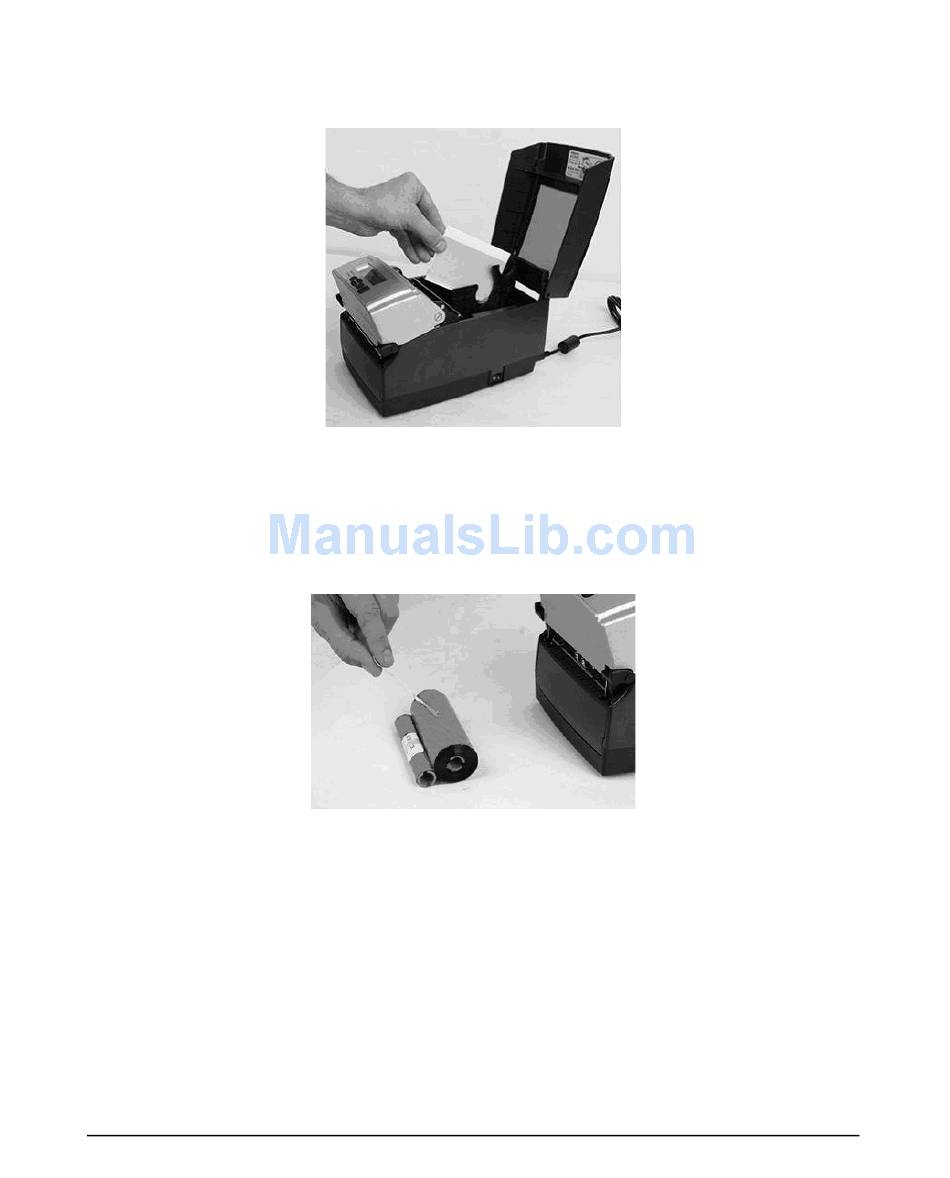

Figure 2-21: Removing the Test Sample from the Printer
3. Place the sample ribbon provided with the printer, in front of the printer for loading.
Place the large media end towards the printer with the small take up roll end facing
away from the printer as shown in Figure 2-22 below. Gently remove the tape off the
ribbon to prepare for ribbon loading.
Figure 2-22: Removing Tape Off of the Ribbon
G e t t i n g S t a r t e d
2-23
