Tally Dascom 7006 User Manual page 49

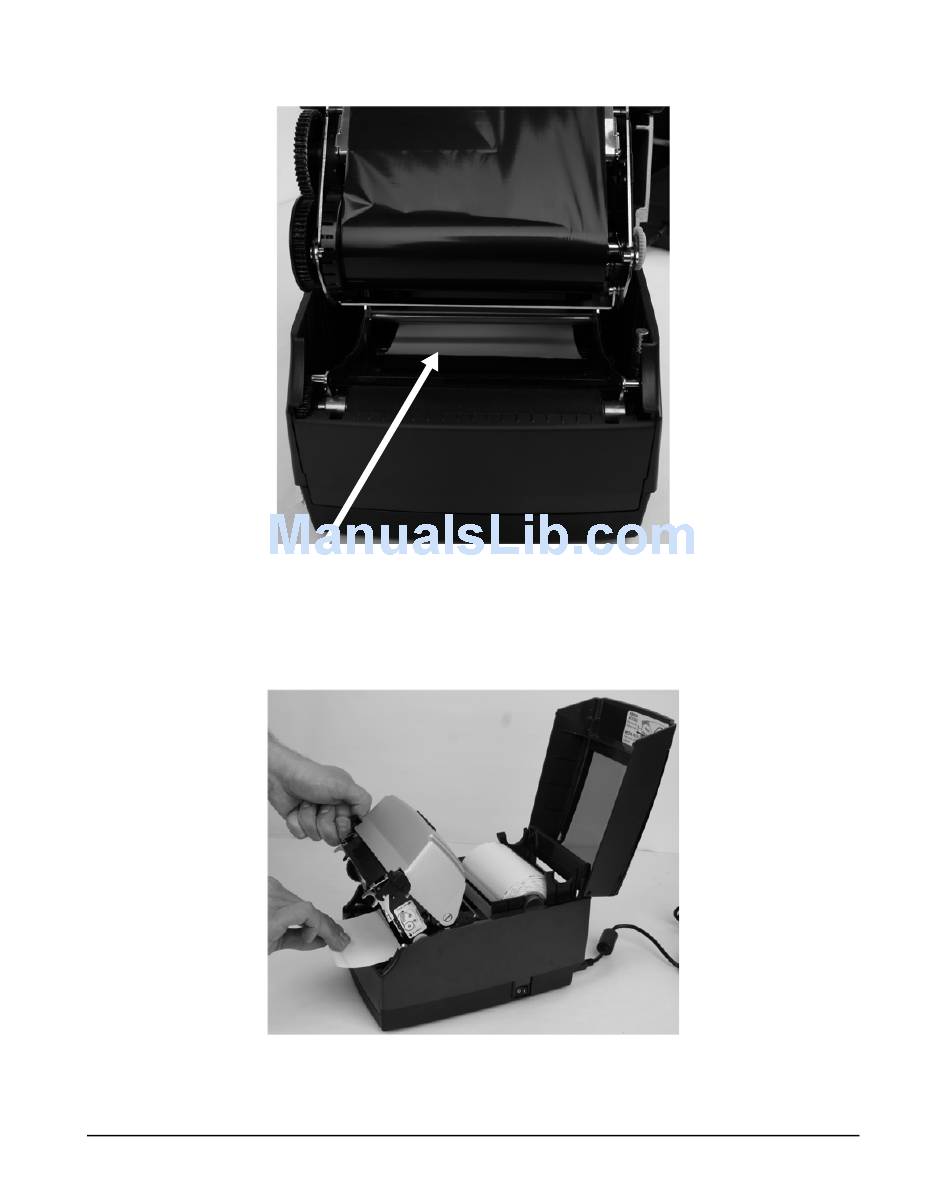

12. The media should be visible as shown in Figure 2-50 below the round metal rod.
Figure 2-50: Front View of Media Being Loaded Under Media Guide
13. Pull the media forward three to four inches from within the mechanism, past the
drive platen, as shown in Figure 2-51. Center the media on the platen before pro-
ceeding to the next step.
Figure 2-51: Pulling the Media Three to Four Inches then Centering on the Platen
G e t t i n g S t a r t e d
2-39
