Connection Ports and Power Connector

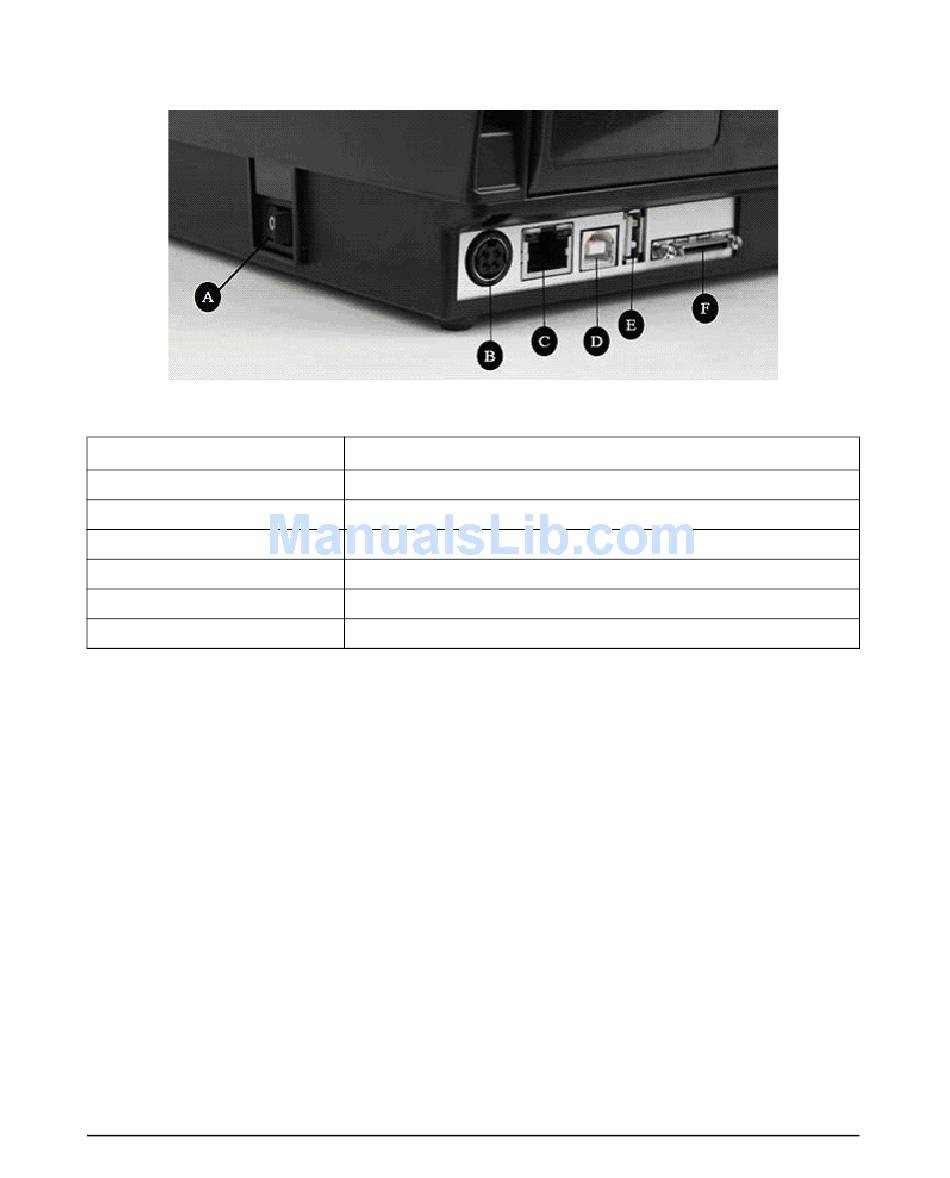

Figure 2-5: Connections Ports and Power Connector (Back View)
Connector
A – ON/OFF switch
B – Power connector
C – Ethernet connector (RJ-45)
D – USB-B device port
E – USB-A host port
F – Serial/Parallel port
Use
Controls printer power
Connects to power supply
Ethernet communications port for network connectivity
USB communications port
USB communications port
Serial/parallel data communications port
