G e t t i n g S t a r t e d
7. Next, insert the ribbon supply roll. Lift the ribbon supply roll, as shown in
Figure 2-26, with one hand as it currently is positioned with the leader text showing.
Examine the ends of the ribbon supply roll and notice the notches on the roll. These
notches fit into the printer. Refer to Figure 2-27 for clear pictures of the notches.

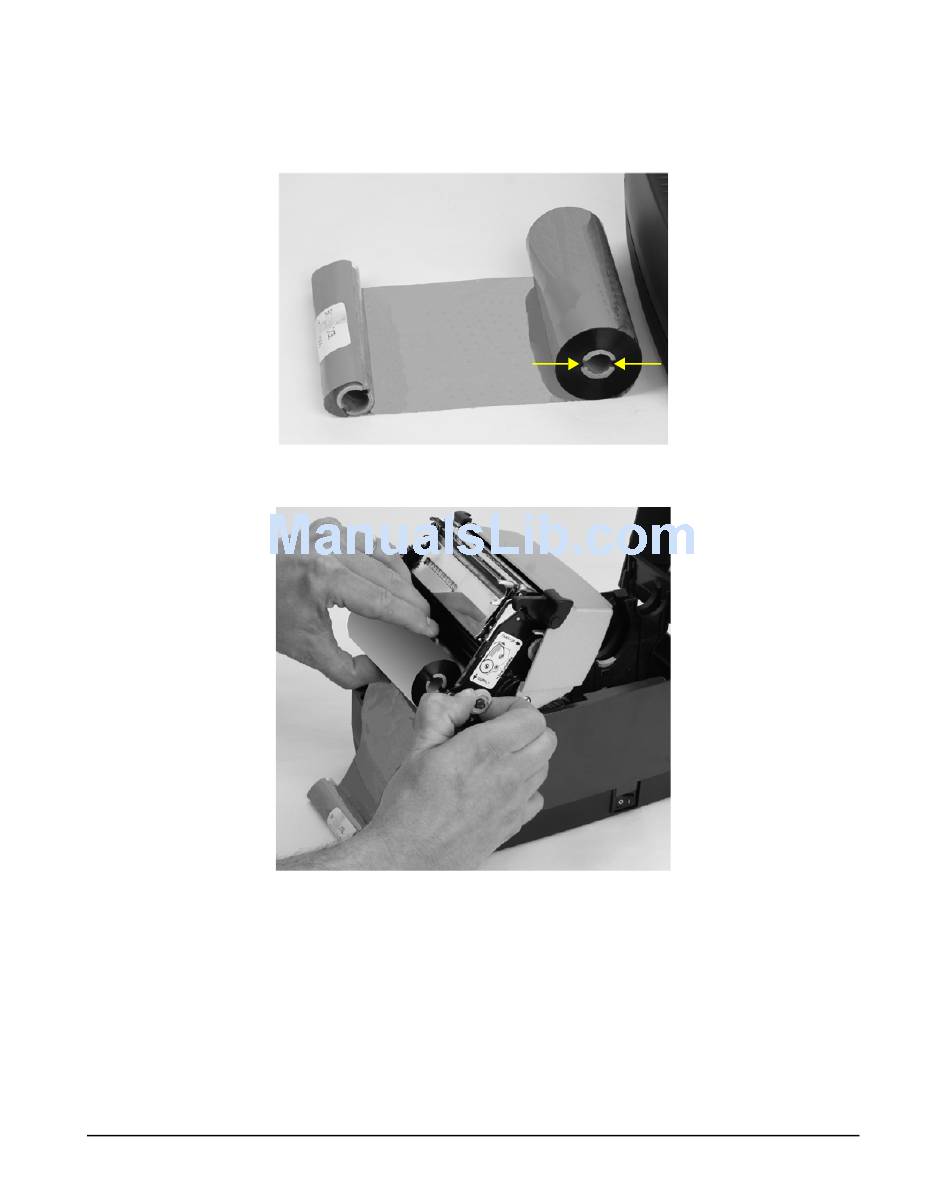

Figure 2-27: Lining up the Ribbon Supply Core Notches with the Supply Spindle Notches
2-26
Figure 2-26: Ribbon Supply Core Notches
