DataCard ImageCard IV User Manual page 88

6-6
5
6
7
Use the Printing Preferences dialog box
Make sure the printer power is on and the printer is connected to the PC.
1
2
3
4

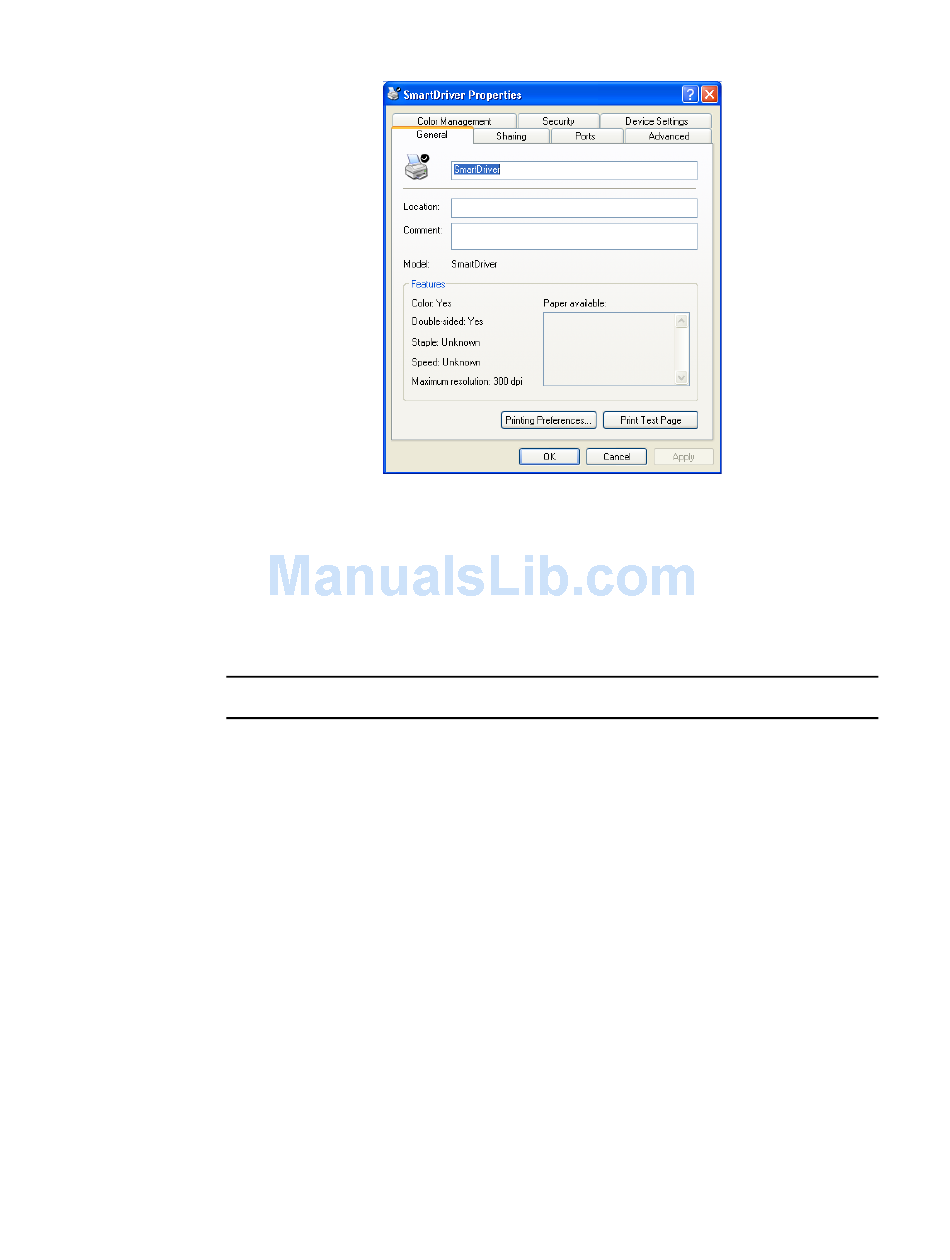

Figure 6-2: Properties dialog box, Windows 2000 and XP
Select the tab that contains the information you want to view or change.
If you make changes, click OK to save the settings and close the dialog box. If you
do not want to make changes, click Cancel to close the Properties dialog box.
If you change the port, reboot the PC and power the printer off and on.
Select Start from the Windows 2000 or XP taskbar.
From the Windows Start menu, select Settings and then Printers (2000) or
Printers and Faxes (XP). The Printers (and Faxes) window appears.
Click once on the SmartDriver icon.
Select File from the Printers menu bar, and then select Printing Preferences. The
Printing Preferences dialog box appears.
Using the printer driver
♦
User's Guide for the ImageCard® IV Printer
