Interface cable
The ImageCard IV printer uses an interface cable (part number 806797-001) to
connect the port on the printer to the ECP parallel port on the PC.
Power cable
The ImageCard IV printer uses one of the following power cords:
•
•
•
•
•
•
•
•
•
•
•
Smart card cable
If the ImageCard IV printer has one or more smart card modules, it uses a smart card
cable to connect the smart card port and the PC.
The smart card serial cable must be a DB9 serial cable, up to 2 feet (1.8 meters) long
maximum. The smart card serial cable is part number 805815-004.
User's Guide for the ImageCard® IV Printer

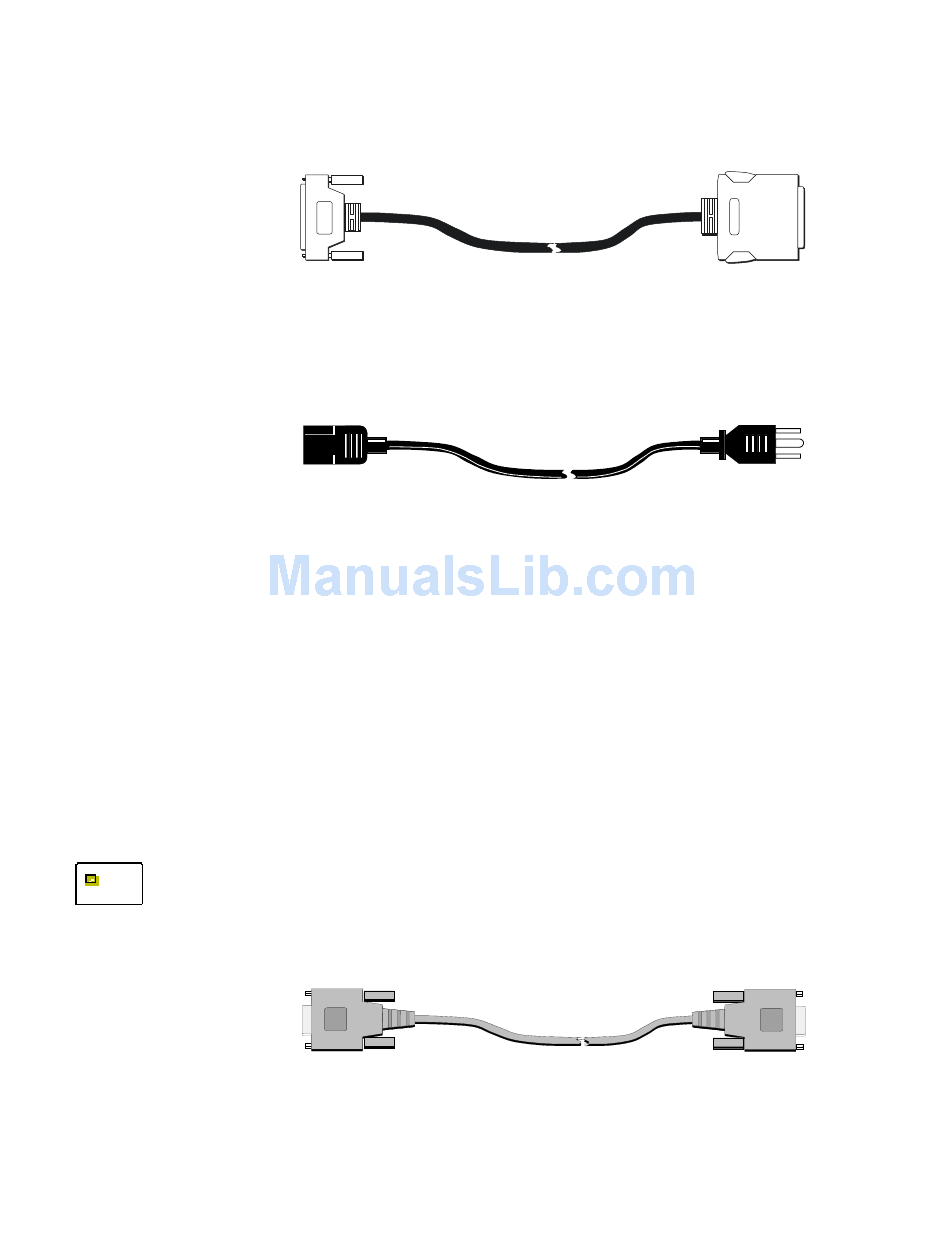

Figure B-7: Parallel port cable
U.S. power cable (part number 804517-001)
Figure B-8: U.S. power cable
European power cable (part number 806842-001)
Australian power cable (part number 806842-002)
United Kingdom power cable (part number 806842-003)
Danish power cable (part number 806842-004)
Indian power cable (part number 806842-005)
Israeli power cable (part number 806842-006)
Italian power cable (part number 806842-007)
Swiss power cable (part number 806842-008)
Japanese power cable (part number 806913-001)
Chinese power cable (part number 806842-009)
Figure B-9: Smart card serial cable
