Setting up the printer
Set the card separator
1
2
i
3
4
User's Guide for the ImageCard® IV Printer
Remove the cover of the input tray. If the tray has a latch, turn the latch one-
quarter turn counterclockwise to release the tray
Lift the input tray and set aside
Do not tip the tray upside down. The latching pin can fall out and the pin is
required for the tray to operate properly.

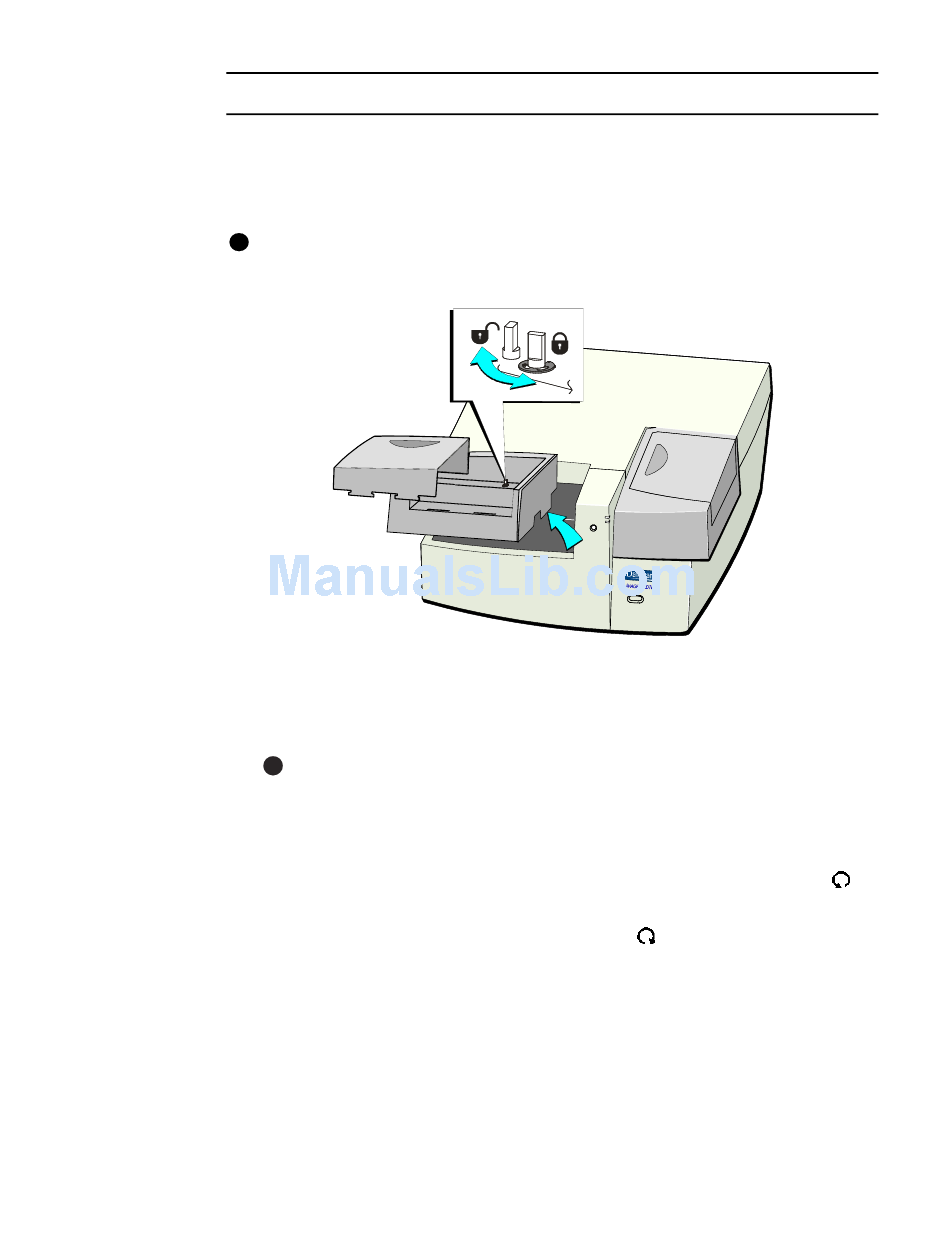

Figure 3-9: Remove the card input tray
Refer to the packaging for your card stock to determine the nominal thickness of
the cards you use. This procedure assumes that the printer is set for 0.030 inch
(0.76 mm), and explains how to adjust for cards that are thicker or thinner.
E
Use 2 or 3 cards for this setting.
Place a card of the desired thickness between the guide rollers
Then, do the following:
– If the card slides past the separator and you can see extra space between the
card and the separator, turn the card separator knob counterclockwise
until the separator touches the card.
– Then turn the card separator knob clockwise
normal variations in thickness.
(Figure
(Figure 3-9).
one-quarter turn to allow for
3-9
3-9).
ICIV064U
(Figure 3-10).
