Removing the supply cartridge

Remove the supply cartridge when a "Supply empty" message appears, or when
setting up the printer.
Remove the overlay cartridge
1
!
2
3
4
Push down on the corner of the printer's top cover to unlatch it. Lift the top cover
to the fully upright position.
When the top cover opens, the interlock switch removes power to all motors and
fans. Power is removed from the heater in the overlay (and topcoat) stations.
Overlay (and topcoat) stations remain HOT.
Move the supply tracker away from the supply roll until it stops (step 1 in
Figure 4-8).
E
If the supply tracker does not have a handle, it will move out of the way
automatically.
Pull up on the cartridge lock to release the overlay cartridge (step 2 in
E
On some cartridges, push and release the cartridge lock to release the
overlay cartridge.
1

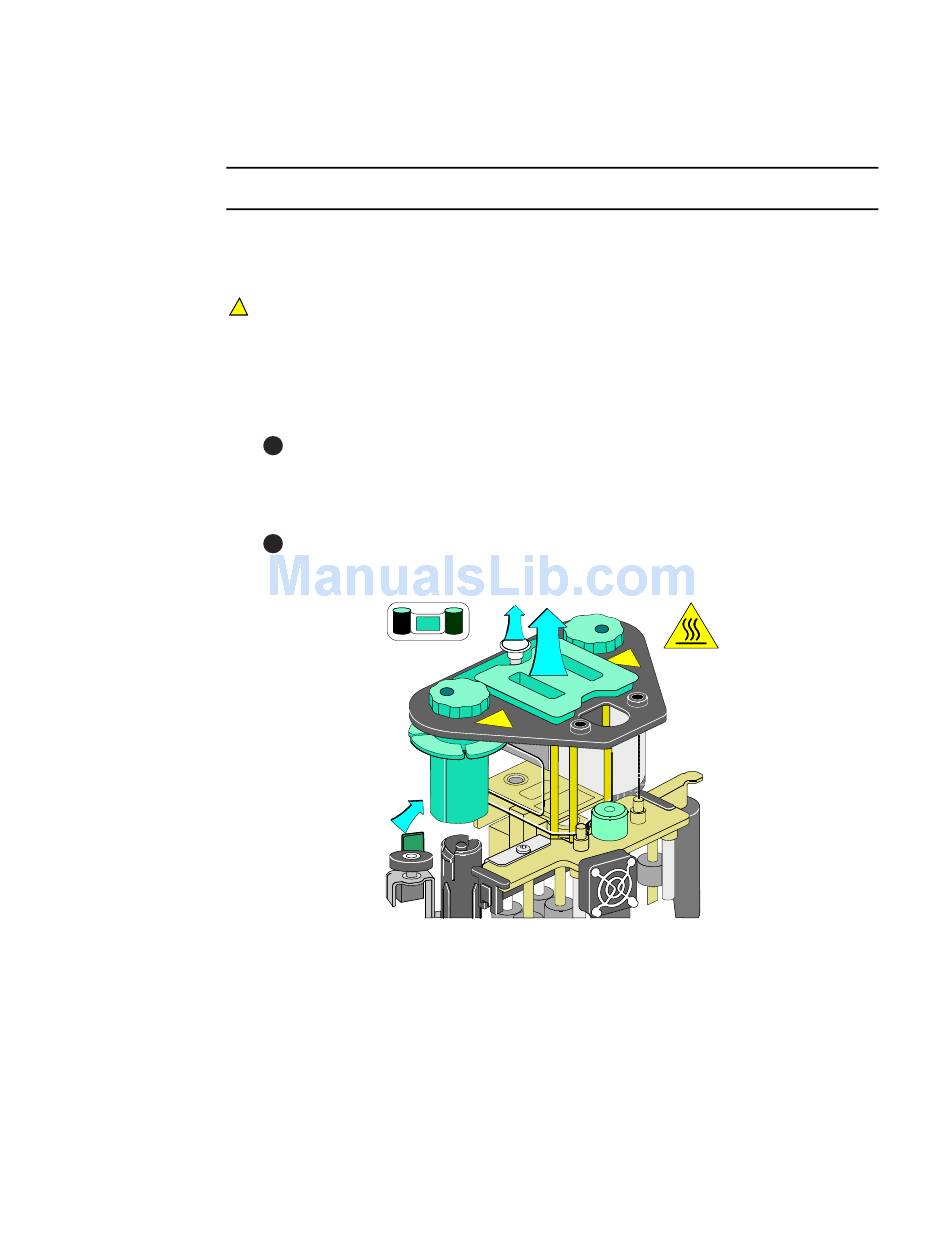

Figure 4-8: Remove the overlay cartridge
Lift the overlay cartridge straight up until the cartridge is above the edge of the
printer (step 3 in Figure
2
3
4-8). Remove the cartridge from the printer.
♦
