10 Remove the ESD strap.
Align the connector and the receptacle with the green label away from the
printhead. The connector fits into the receptacle in only one way, as shown in
Figure 7-19.
iciv181u

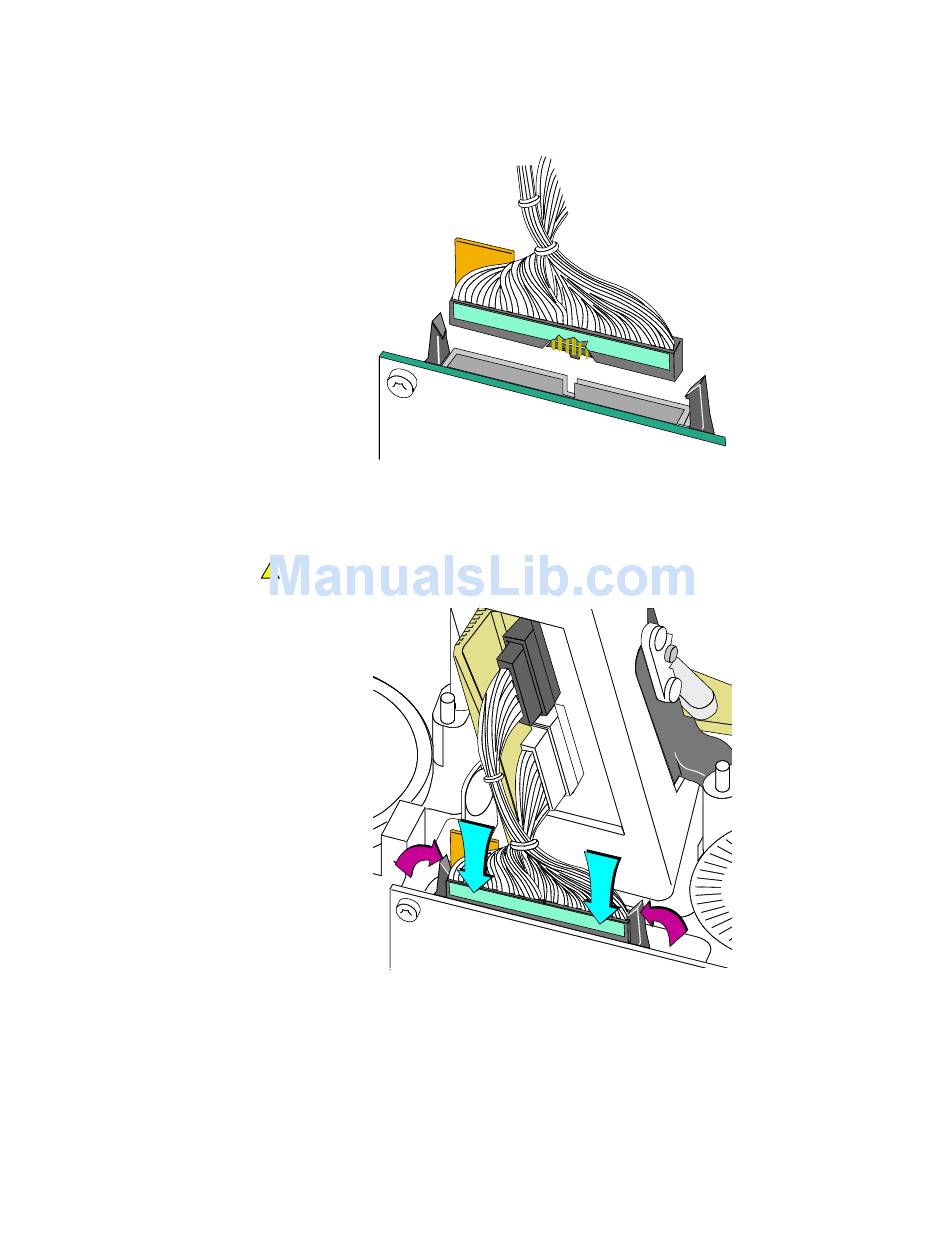

Figure 7-19: Align the cable notch with the slot
Press the printhead cable into the connector on the printhead board until it is
seated (Figure 7-20).
!
Do not press on the wires of the cable.
iciv090u
Figure 7-20: Attaching the printhead cable to the board
Open the cleaning pen.
Using firm pressure, move the cleaning pen up and down along the length of the
printhead edge. Be sure to completely clean the rounded edge of the printhead.
