3

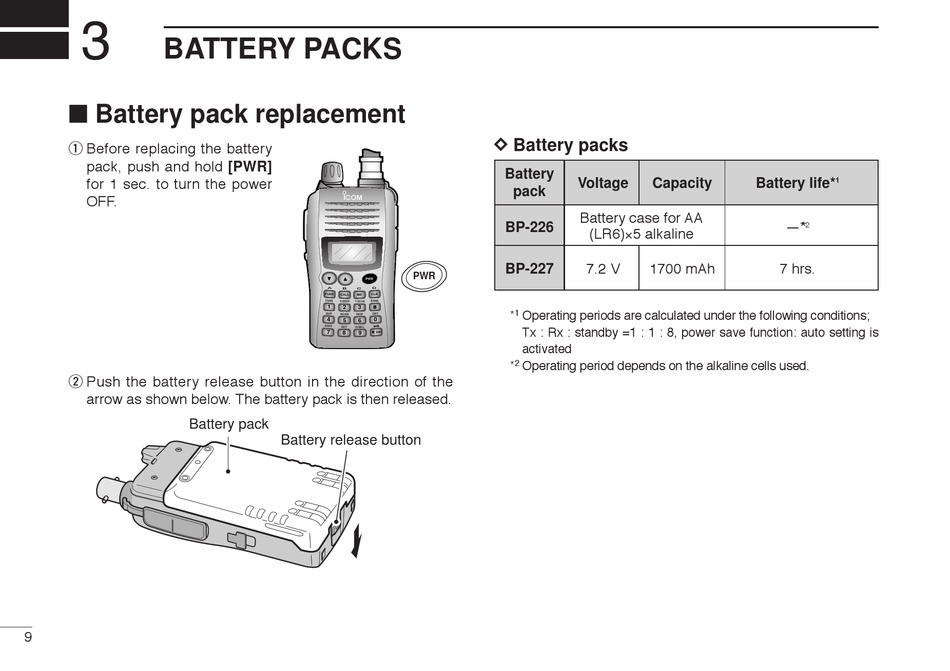

BATTERY PACKS
■ Battery pack replacement
q Before replacing the battery
pack, push and hold [PWR]
for 1 sec. to turn the power
OFF.
w Push the battery release button in the direction of the
arrow as shown below. The battery pack is then released.
Battery pack
9
PWR
PWR
A
D
B
C
FUNC
CALL
MR
CLR
TONE
BANK
P.BEEP
T.SCAN
1
2
3
DUP
SKIP
OPT
SCAN
4
0
5
6
PRIO
SET
H/M/L
7
8
9
ENT
Battery release button
D D Battery packs
Battery
Voltage
Capacity
pack
Battery case for AA
BP-226
(LR6)×5 alkaline
7.2 V
1700 mAh
BP-227
1
*
Operating periods are calculated under the following conditions;
Tx : Rx : standby =1 : 1 : 8, power save function: auto setting is
activated
2
*
Operating period depends on the alkaline cells used.
Battery life*
1
—*
2
7 hrs.
