Preparation; Attaching The Battery Pack - Icom IC-T10 Basic Manual

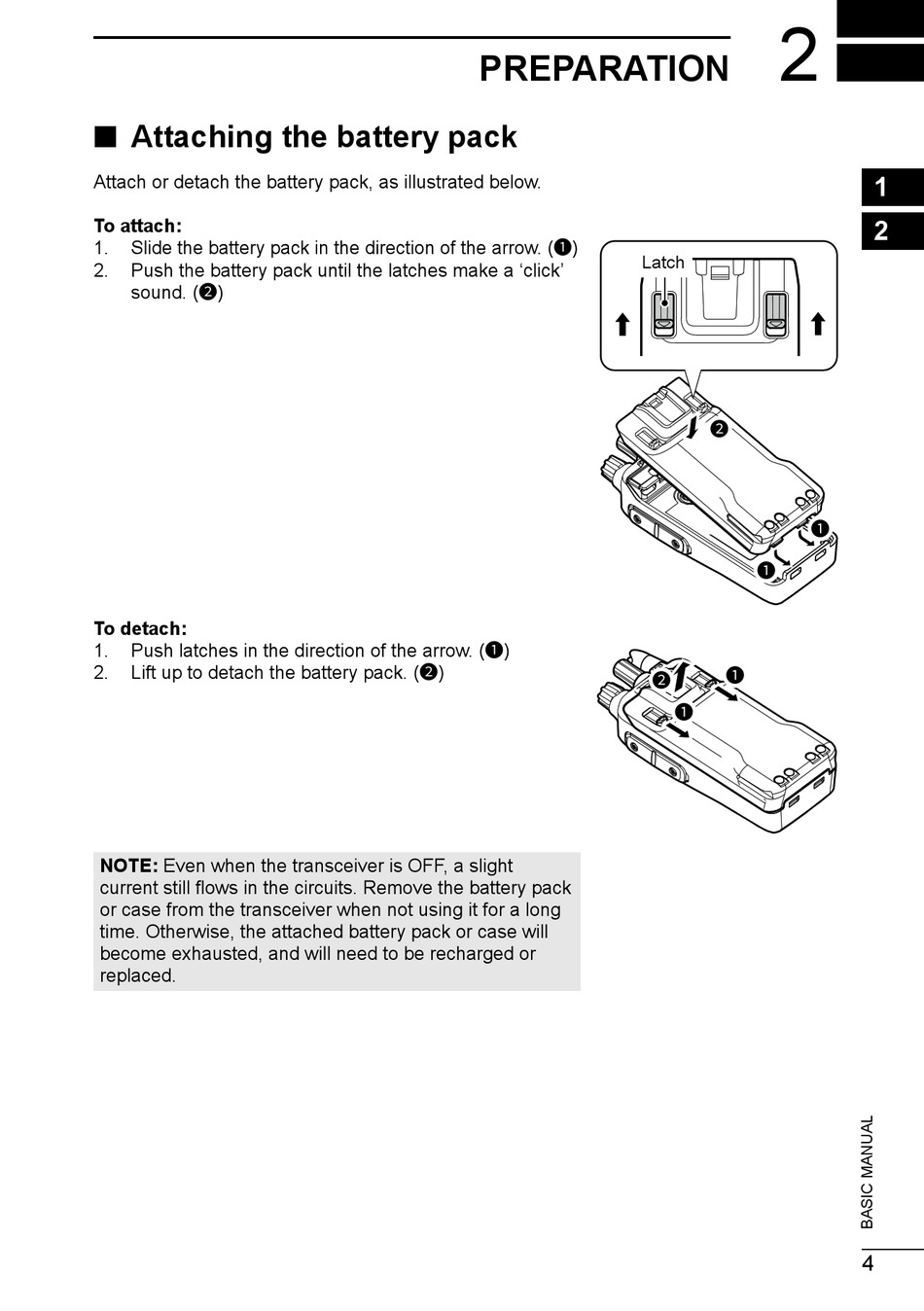

■ Attaching the battery pack

Attach or detach the battery pack, as illustrated below.
To attach:
1. Slide the battery pack in the direction of the arrow. (1)
2. Push the battery pack until the latches make a 'click'
sound. (2)
To detach:
1. Push latches in the direction of the arrow. (1)
2. Lift up to detach the battery pack. (2)
NOTE: Even when the transceiver is OFF, a slight
current still flows in the circuits. Remove the battery pack
or case from the transceiver when not using it for a long
time. Otherwise, the attached battery pack or case will
become exhausted, and will need to be recharged or
replaced.

PREPARATION

Latch
2
2
2
1
1
1
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
4
