Manual Adjustment to Straighten Lines and Colors

4
Press ▲ or ▼ to select Adjust Printer, and then press the OK button.
5
Press ▲ or ▼ to select Head Posi. Adj., and then press the OK button.
6
Press ▲ or ▼ to select Standard or Simple, and then press the OK button.
A test pattern is printed for adjustment.
Adjustment is now finished if you have printed on a roll.
7
If you are printing on cut sheets, a confirmation message is displayed on the Display Screen asking you wheth-
er to continue printing.
Press the OK button and follow the instructions on the Display Screen.
Manual Adjustment to Straighten Lines and Colors
Manual Adjustment to Straighten Lines and Colors

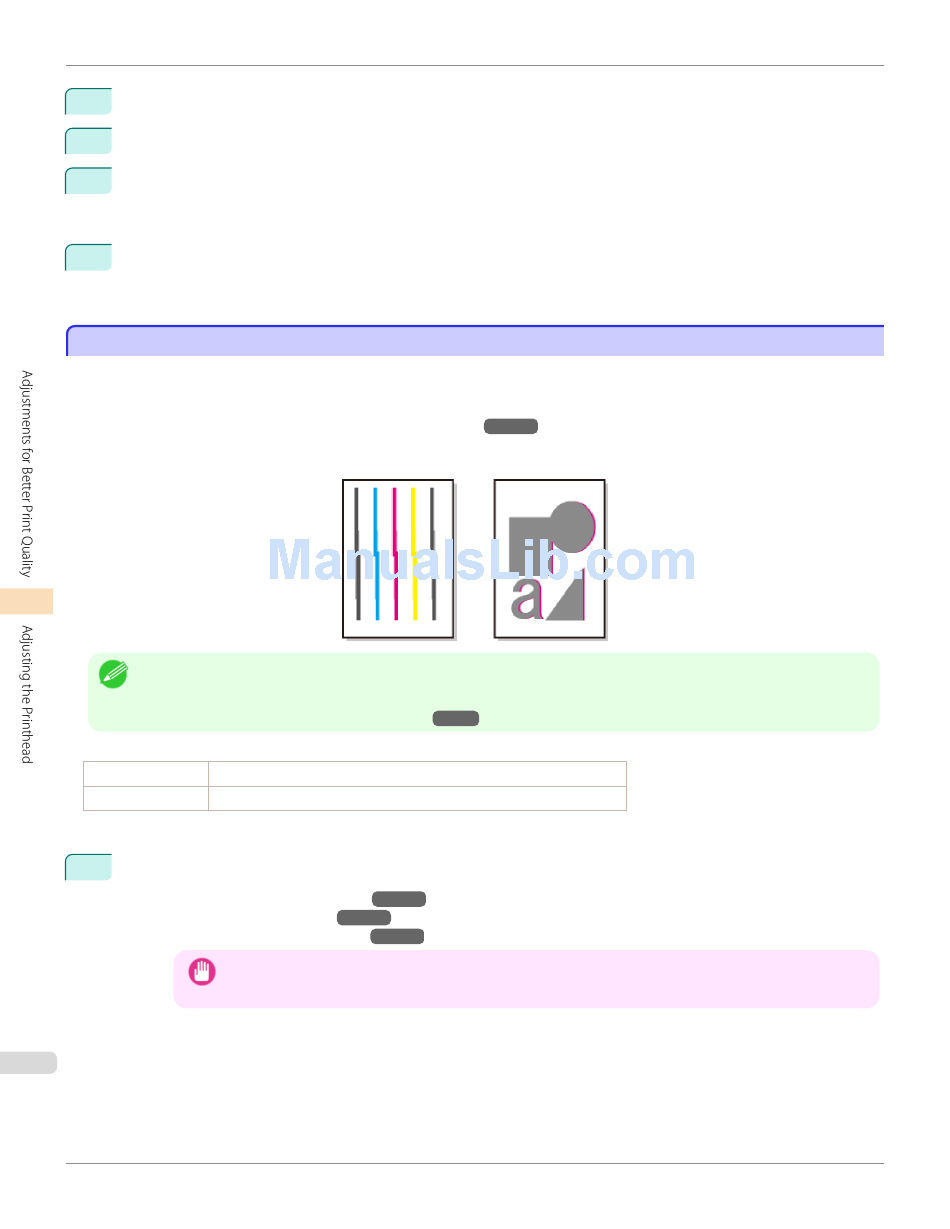

If printed vertical lines are warped or colors are out of alignment, execute Head Posi. Adj. to adjust the Printhead
alignment.
Normally, execute Standard.
(See "Automatic Adjustment to Straighten Lines and Colors.")
However, when printing on special paper, or if printing is not improved after Standard, try Manual.
Manual adjustment requires you to examine the printed test pattern and enter an adjustment value.
•
We recommend using the type of paper you use most often for adjustment.
•
Note If the printhead position was not adjusted during initial setup or when the printhead was replaced, execute Initial adjustmt.
(See "Adjustment When Installing the Printhead.")
Items to Prepare
When Using Rolls
When Using Sheets
Perform adjustment as follows.
1
Load paper.
• Loading Rolls on the Roll Holder
• Loading Rolls in the Printer
• Loading Sheets in the Feed Slot
Important
798
An unused roll at least 254.0 mm (10.00 in) wide
Two sheets of unused paper, A4/Letter size (or one sheet when using A2)
→P.533
→P.536
→P.557
•
Always make sure the loaded paper matches the type of paper specified on the printer. Adjustment cannot be
completed correctly unless the loaded paper matches the settings.
→P.796
→P.800
