iPF6450

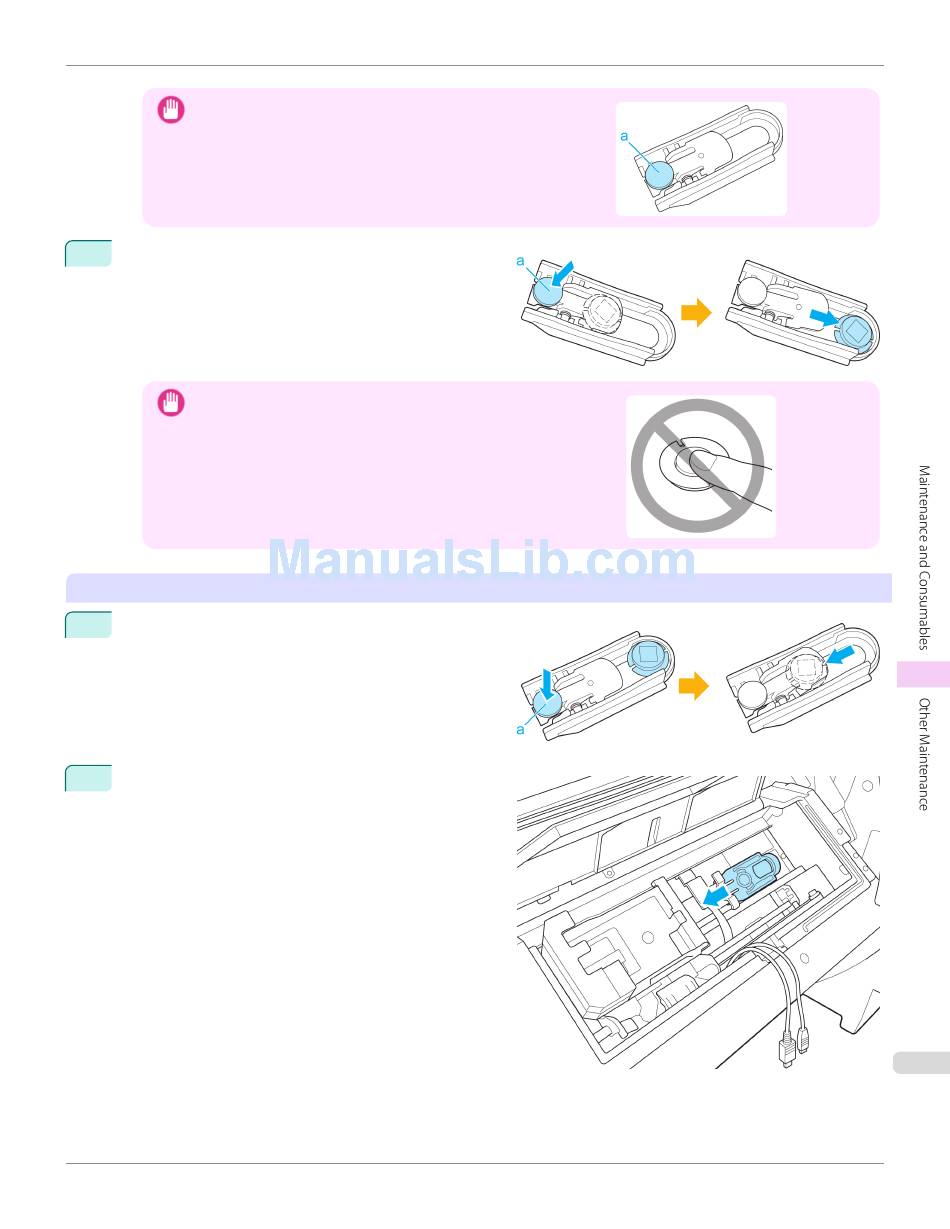

• Do not touch the (a) part of the White Calibration Tile Holder except
when removing the White Calibration Tile.
Important
Doing so may cause the White Calibration Tile to fall, which can lead
to damage.
10
Push the (a) part of the White Calibration Tile Holder
and remove the White Calibration Tile.
• Never touch the white part of the White Calibration Tile.
If the white part is dirty, the printer may not be able to obtain the correct
Important
color measurement results.
Installing the Spectrophotometer Sensor and White Calibration Tile
1
Place the White Calibration Tile in the White Calibration
Tile Holder and mount it in the position shown in the di-
agram while pushing down on the (a) part.
When installing the White Calibration Tile, make sure it
is facing the appropriate direction.
2
Install the White Calibration Tile Holder on the Up-down
Unit as shown in the figure and move the holder in the
direction of the arrow to fix it in place.
User's Guide
Replacing the Spectrophotometer Sensor of the Spectrophotometer Unit (option)
969
