Using the Output Stacker

c Basket Arm R and Basket Arm L
Holds the Basket Rod (tag side) attached to the Output Stacker. When the Output Stacker is not used, push it
down and store it next to the Stand Leg.
d Basket Rod (tag side) and Basket Rod (cord side)
Holds the cloth Output Stacker securely in specific positions.
e Basket Rod
Keeps Basket Arm R and Basket Arm L at the same angle.
f Rod Holder
Holds the middle of the Basket Rod (cord side).
(See "Using the Output Stacker.")
Using the Output Stacker
Using the Output Stacker

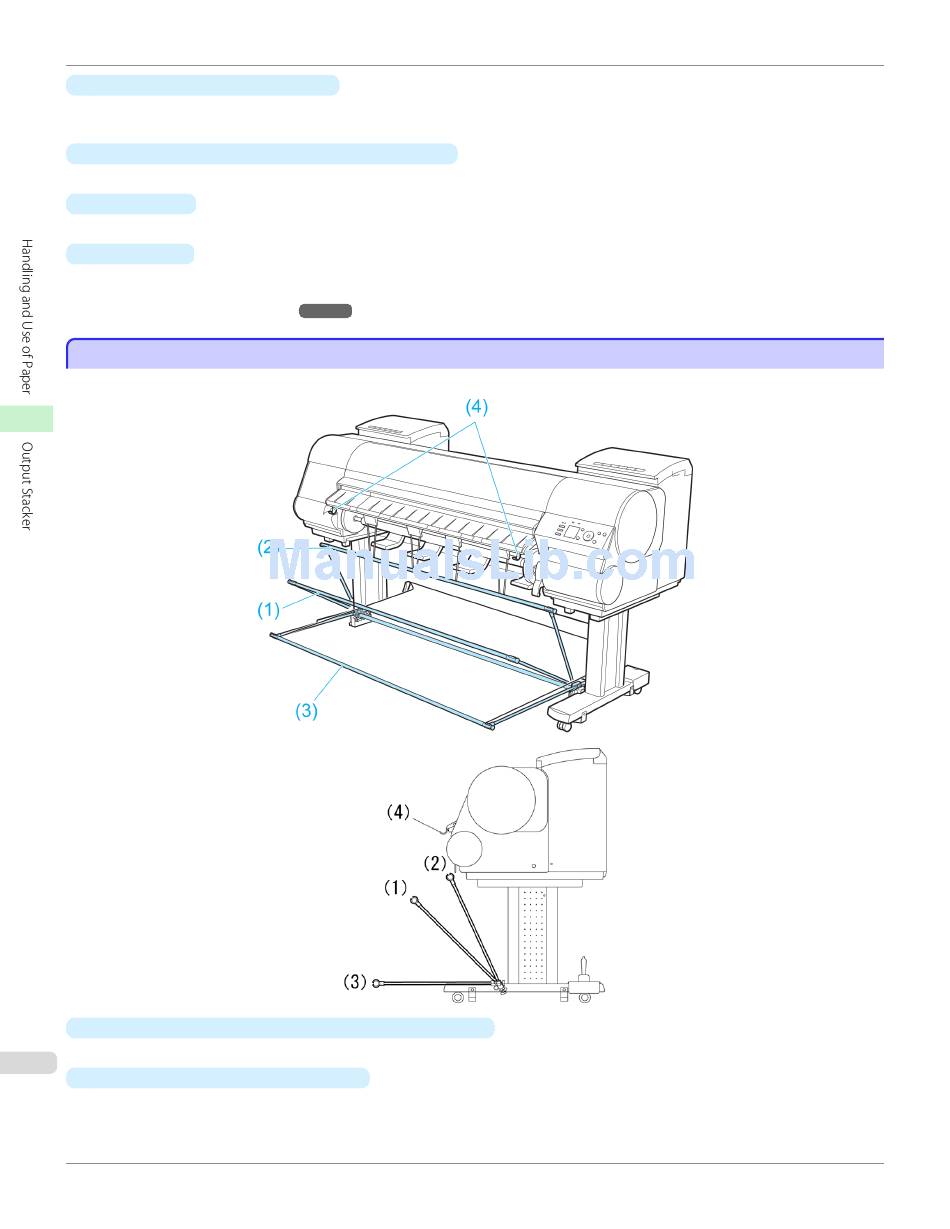

The Output Stacker can be held at four positions, as shown.
• When storing printed documents on the Output Stacker
Use position (1).
542
• When the Output Stacker is not used
Use position (2).
P.542
➔
