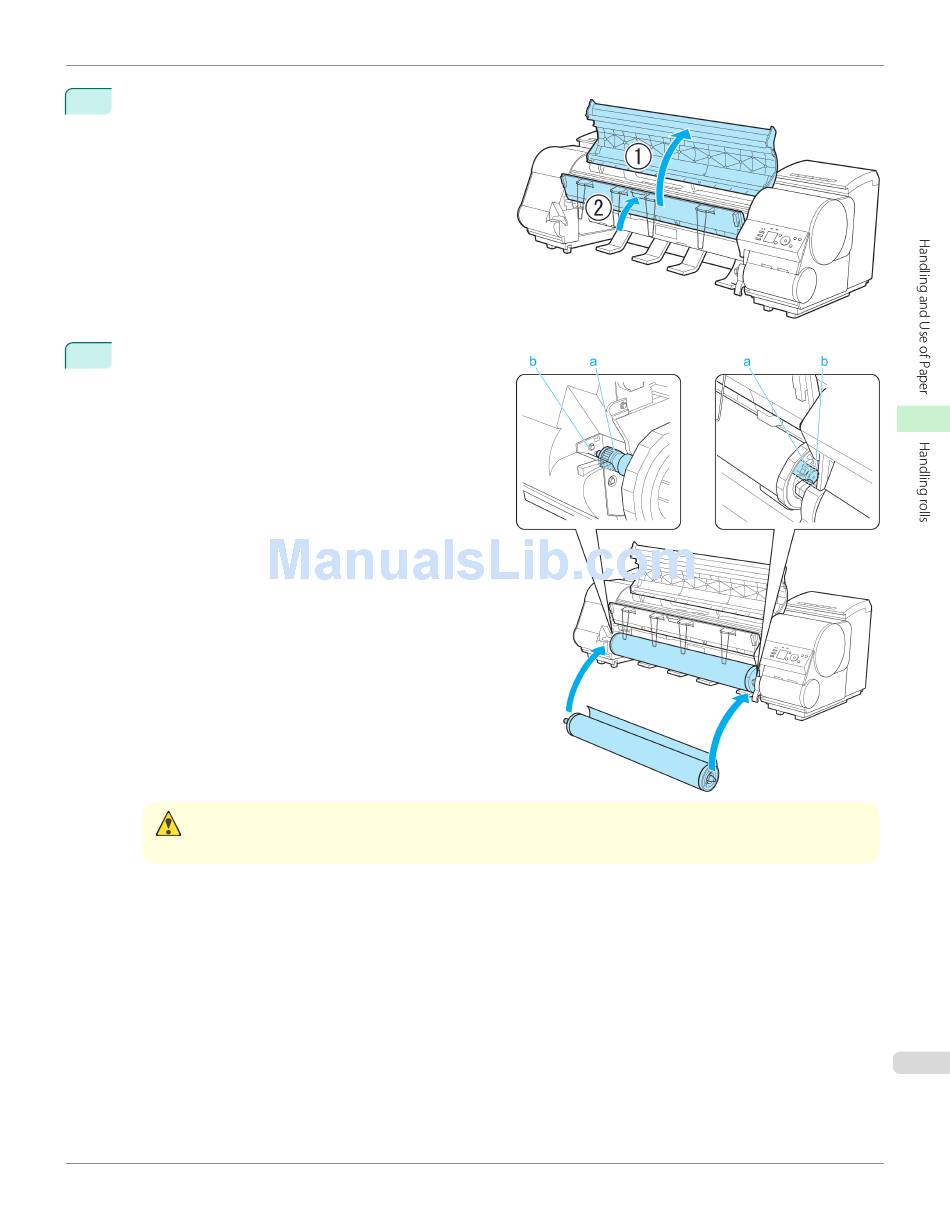

Open the Top Cover and lift the Ejection Guide.
4
Holding the Roll Holder so that the side with the white
gear faces the side of the Roll Holder Slot with a white
gear, load the Roll Holder shaft (a) into the grooves (b)
on both ends of the Roll Holder Slot, fully into the slot.
• Be careful not to drop the roll and hurt yourself when loading it.
Caution • Be careful not to pinch your fingers between the Roll Holder shaft (a) and the guide grooves (b) when loading rolls.
