4.
Slide the drive into the bay, being careful not to crimp or fold any cables.
Install the drive so that it faces up; if it isnÕt clear which way the drive should face (e.g.
hard drives), assume that the SCSI connector (see illustration on next page) should be in
the back and the SCSI connector key should face up.

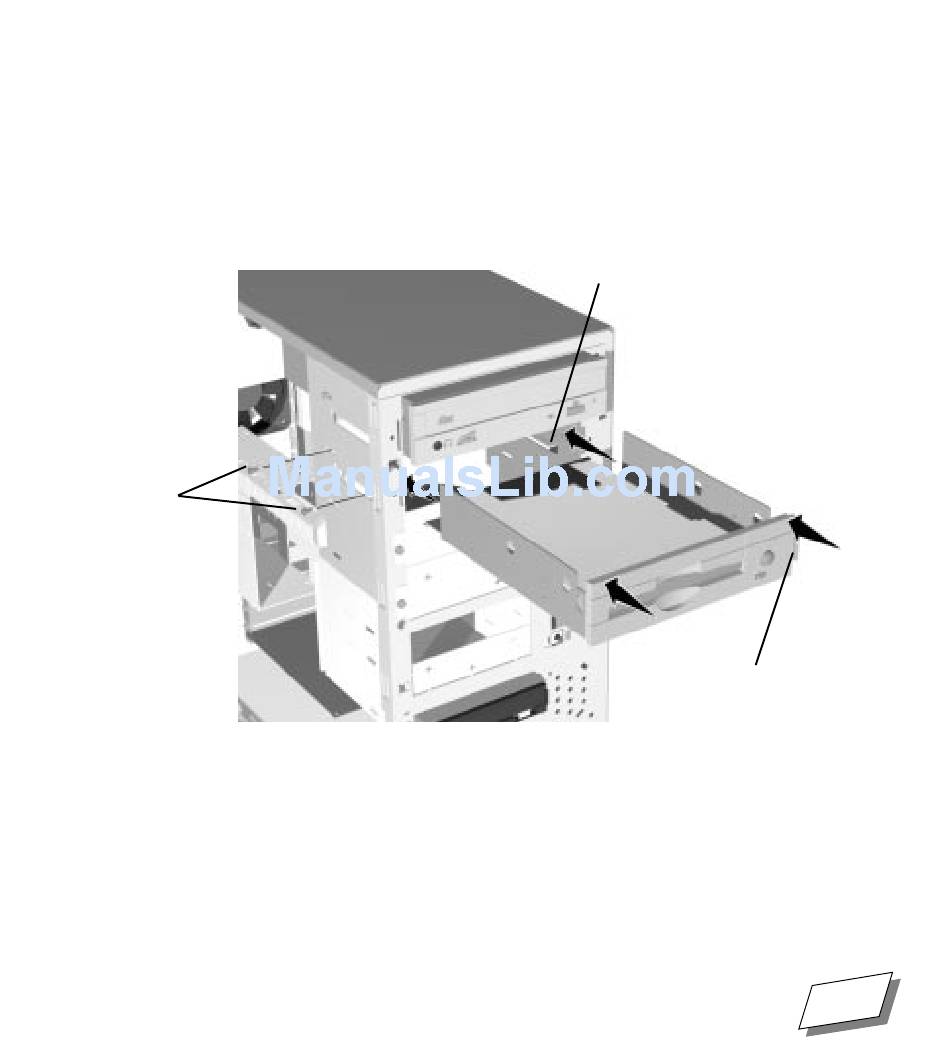

The 5.25 inch drive bays above the bottom 5.25 drive bay use mounting screws on the
left side and a rail on the drive which slides from the front into a track in the drive bay
on the right side of the bay.
mounting
screws
5.
Line the screw holes on the side of the drive up with the slots in the drive
housing, and insert the mounting two screws, front and rear, on each side
of the drive. Tighten screws Þrmly, but donÕt overtighten (see the
illustration above).
For Technical Support, Call 1-800-708-6227
Chapter 7, Installing Internal Drives
track
PowerTower Pro UserÕs Guide
rail
