7.2.2 Connecting the Antenna

Screw the supplied whip antenna to the SMA antenna socket at the top of the
Receiver (see Figure 28).
If the Receiver is lying on a tabletop use the hinge to bend the antenna to an
upright position.
Note: You can also use Fourier Systems' magnet antenna.

7.2.3 Powering the Receiver

Connect the supplied AC/DC adaptor to the 9-12V DC input at the bottom of the
Receiver (see Figure 28), and then connect it to the mains.

7.2.4 Connecting the Receiver to a Computer

Use either USB or serial communication cable.
To connect a serial communication cable:
 Connect the stereo phone jack to the RS-232 socket at the bottom
of the receiver (see Figure 28)
Data LED
indicator
USB
socket

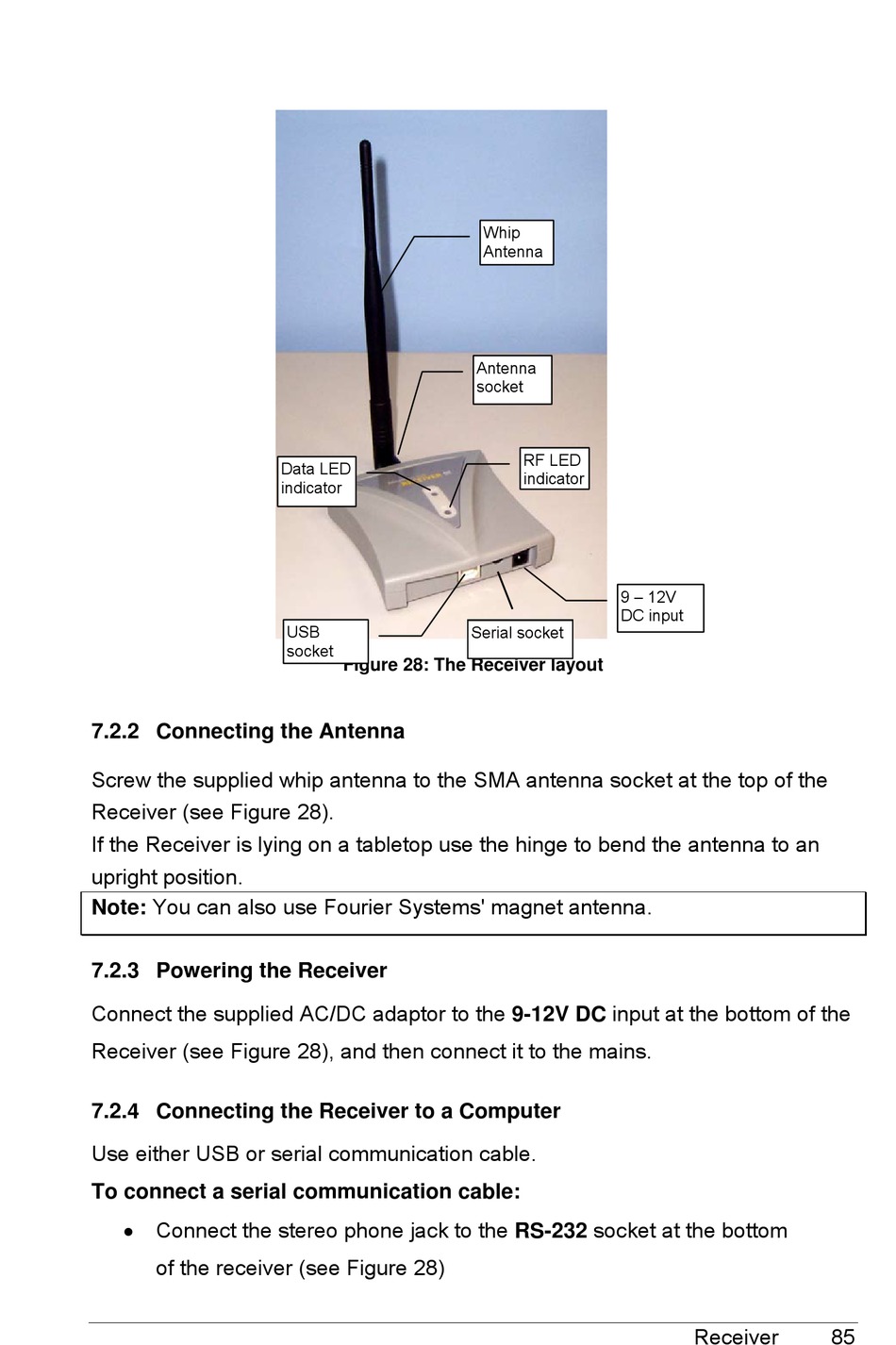

Figure 28: The Receiver layout
Whip
Antenna
Antenna
socket
RF LED
indicator
9 – 12V
DC input
Serial socket
Receiver 85
