clockwise until the latches "lock" into place.
As you reattach the cone, make sure to run the cable to the cable
slot in the base, or the cone will not fit snugly against the base.
4.
Place the debris screen, point down, into the cone. The screen
prevents large bits of debris from blocking the funnel hole

4.2.6 Preparing the Anemometer (Wind Sensor)

1.
Open the anemometer kit and attach the drip ring. The anemometer
drip rings provide protection against icing of the wind vane and wind
cups. Follow the instructions below to attach the two drip rings:
A.
Place one of the drip rings on a flat surface with the small hole
facing up.
B.
Securely press the wind vane on top of the drip ring.
Note: You may want to start with the vane tilted slightly.
C.
Make sure the ring fits securely between the two ridges on the
vane with the lower edge parallel to the bottom of the wind vane.

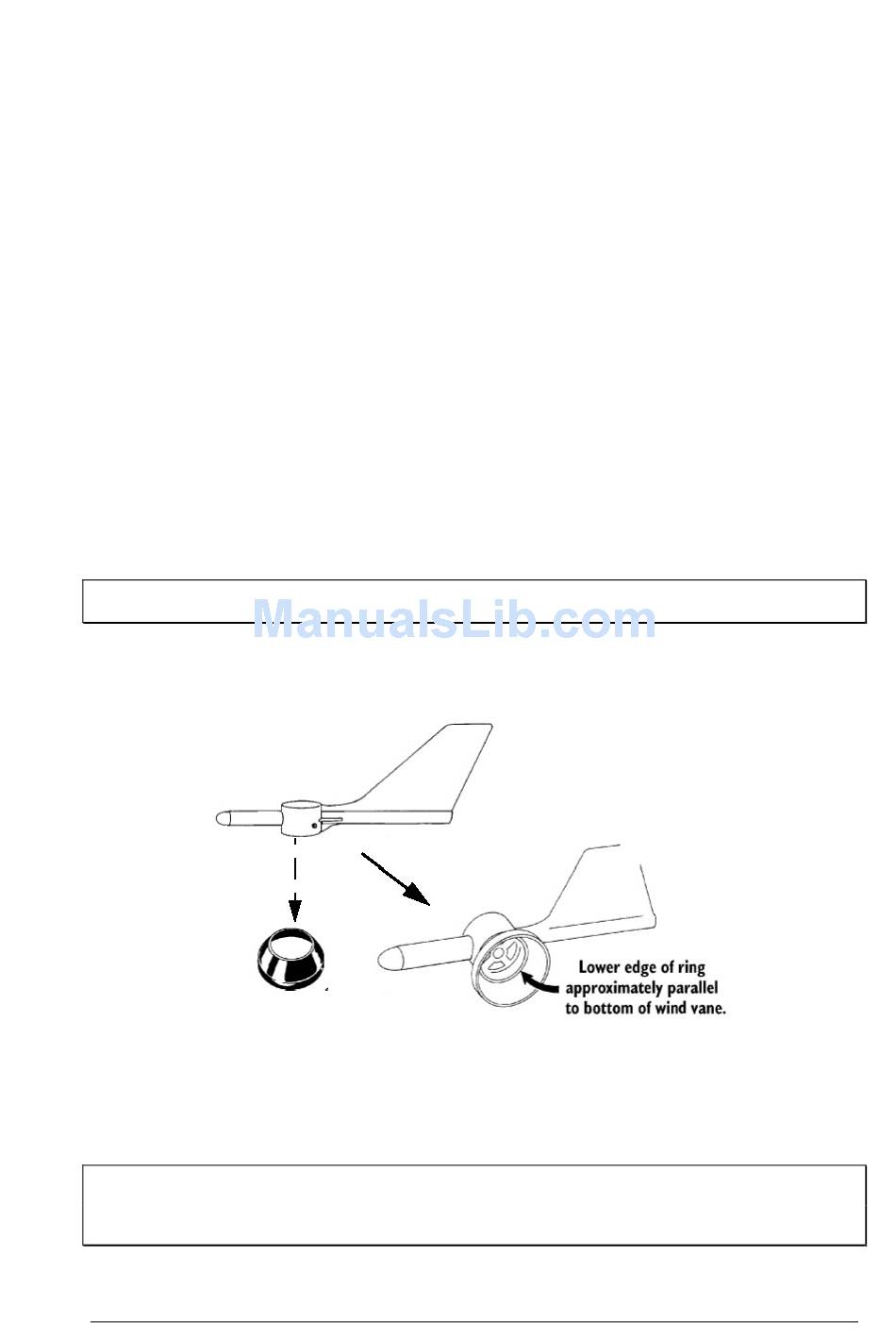

Figure 7: Installing the drip ring onto the wind vane
D.
Install the small end of the other drip ring on the wind cup end of
the anemometer control head as shown below.
Note: The wind cup end of the control head has the smaller of the two stainless
steel shafts
Station Installation
7
