E. Gently push up the drip ring until it reaches the groove on the
control head.
F. Make sure the lower edge of the drip ring is aligned with the lower
edge of the control head.

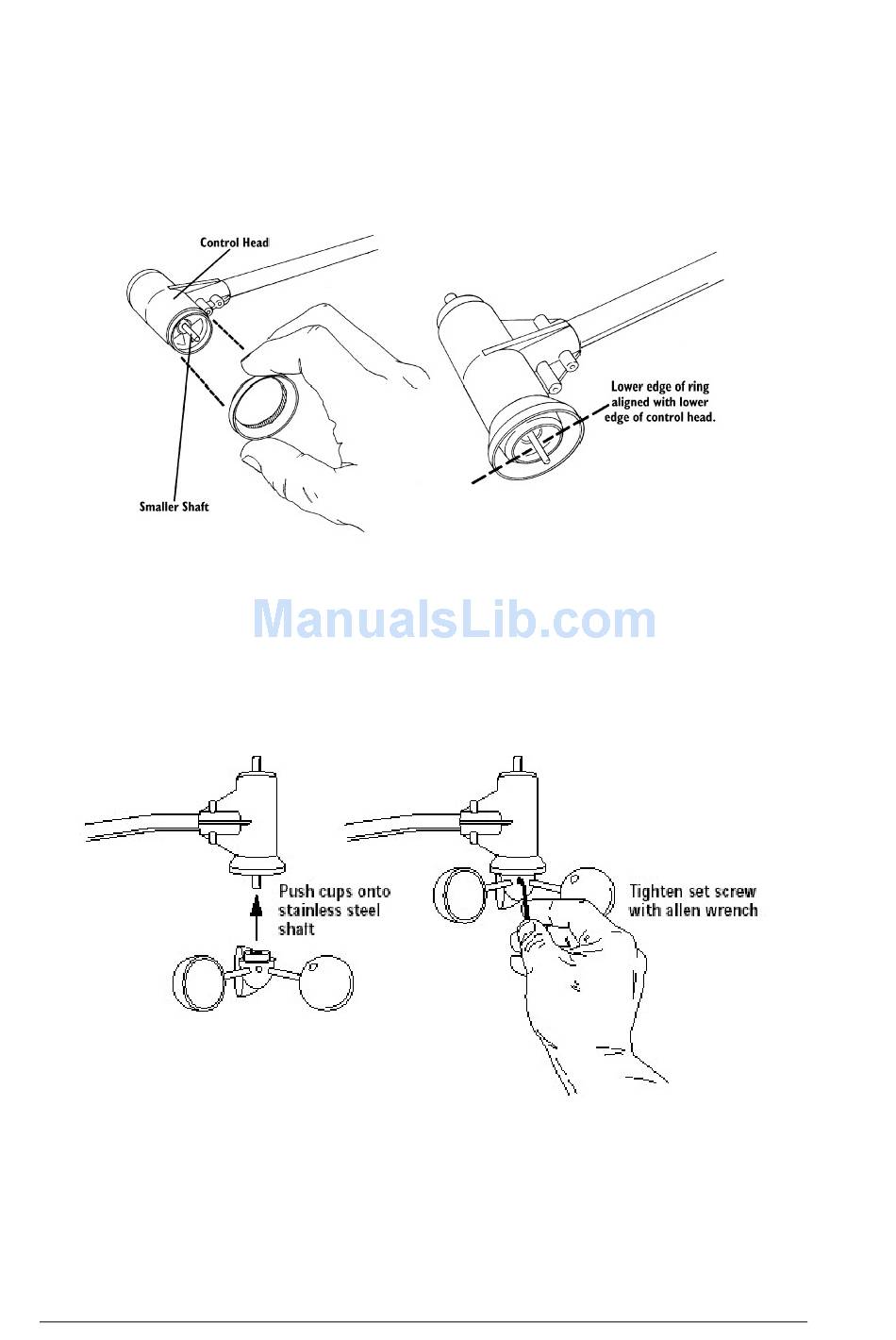

Figure 8: Installing the drip ring onto the anemometer control head
2. Attach the wind cups:
A. Push the wind cups onto the stainless steel shaft at the end of the
arm (see Figure 9).
B. Slide the wind cups as far up the shaft as possible.
C. Use the Allen wrench provided to tighten the setscrew on the side
of the wind cups.
8 Station Installation
Figure 9: Installing the wind cups
