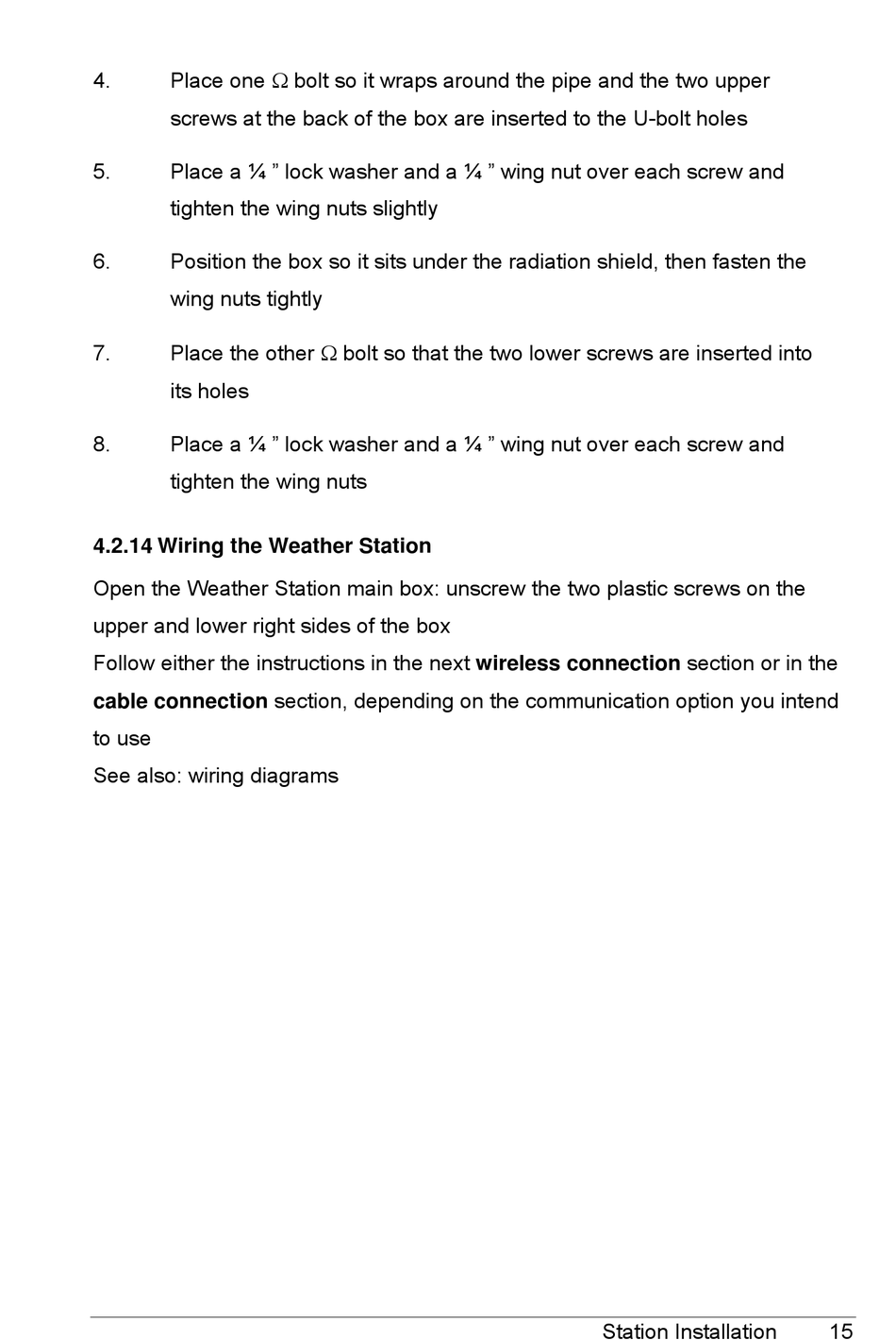

Place one  bolt so it wraps around the pipe and the two upper
4.
screws at the back of the box are inserted to the U-bolt holes
5. Place a ¼ " lock washer and a ¼ " wing nut over each screw and
tighten the wing nuts slightly
6. Position the box so it sits under the radiation shield, then fasten the
wing nuts tightly
Place the other  bolt so that the two lower screws are inserted into
7.
its holes
8. Place a ¼ " lock washer and a ¼ " wing nut over each screw and
tighten the wing nuts

4.2.14 Wiring the Weather Station

Open the Weather Station main box: unscrew the two plastic screws on the
upper and lower right sides of the box
Follow either the instructions in the next wireless connection section or in the
cable connection section, depending on the communication option you intend
to use
See also: wiring diagrams
Station Installation 15
