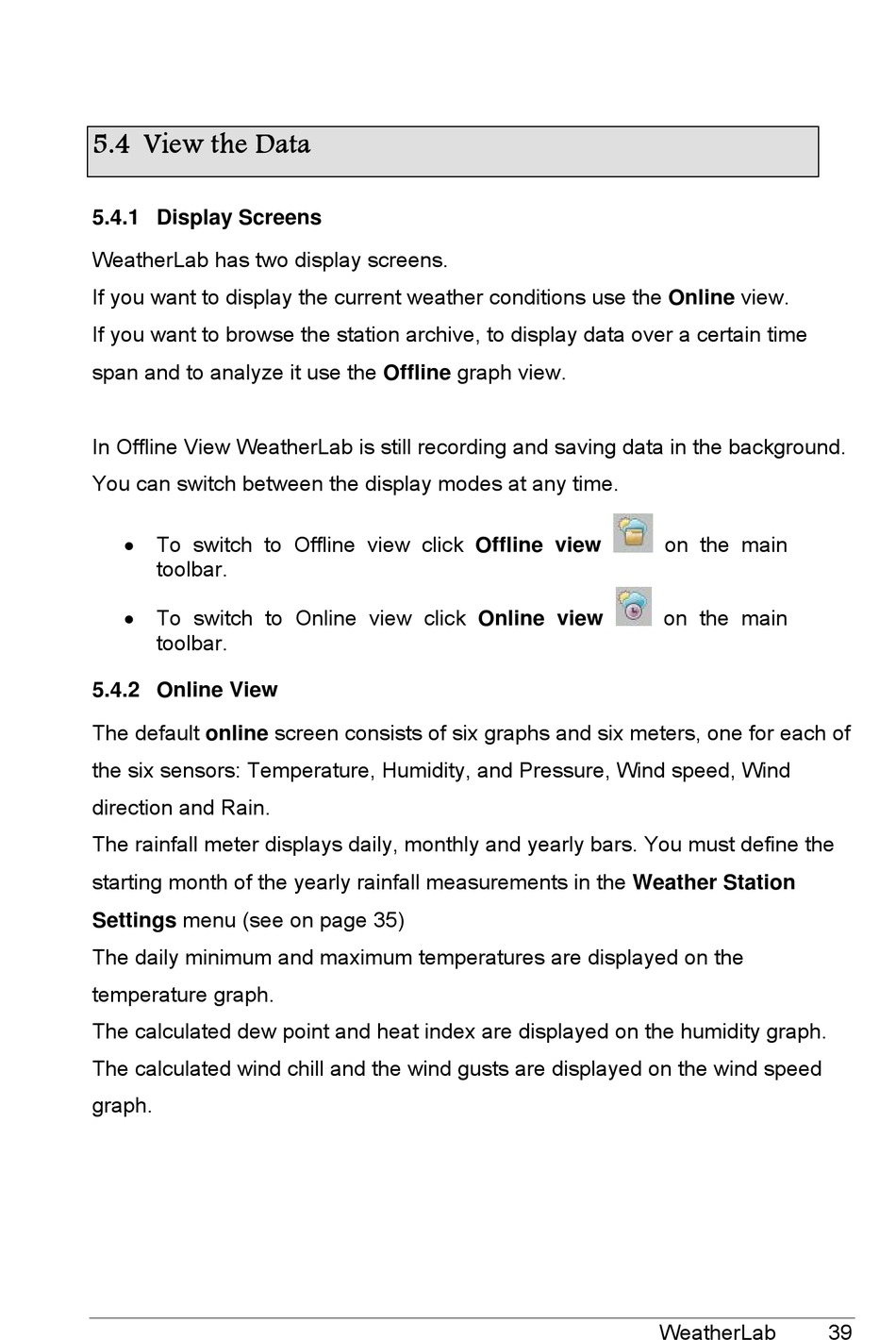

5.4 View the Data

5.4.1 Display Screens

WeatherLab has two display screens.
If you want to display the current weather conditions use the Online view.
If you want to browse the station archive, to display data over a certain time
span and to analyze it use the Offline graph view.
In Offline View WeatherLab is still recording and saving data in the background.
You can switch between the display modes at any time.
 To switch to Offline view click Offline view
toolbar.
 To switch to Online view click Online view
toolbar.

5.4.2 Online View

The default online screen consists of six graphs and six meters, one for each of
the six sensors: Temperature, Humidity, and Pressure, Wind speed, Wind
direction and Rain.
The rainfall meter displays daily, monthly and yearly bars. You must define the
starting month of the yearly rainfall measurements in the Weather Station
Settings menu (see on page 35)
The daily minimum and maximum temperatures are displayed on the
temperature graph.
The calculated dew point and heat index are displayed on the humidity graph.
The calculated wind chill and the wind gusts are displayed on the wind speed
graph.
on the main
on the main
WeatherLab 39
