A. Wireless Connection
1.
Insert the antenna cable to the Weather Station main box through
the hole at the bottom of the box (A) and connect it to the antenna
socket (B) at the top of the transmitter (see Figure 17)
2.
Insert the rain sensor cable to the Weather Station main box
through the hole at the bottom of the box (A) and connect it, flat
side out, to the rain socket (C) on the sensor adaptor (see Figure
17)
3.
Insert the anemometer cable to the Weather Station main box
through the hole at the bottom of the box (A) and connect it, flat
side out, to the rain socket (D) on the sensor adaptor (see Figure
17)
4.
Insert the solar panel cable to the Weather Station main box
through the hole at the bottom of the box (A), connect the male lug
16
Station Installation
K
K
H

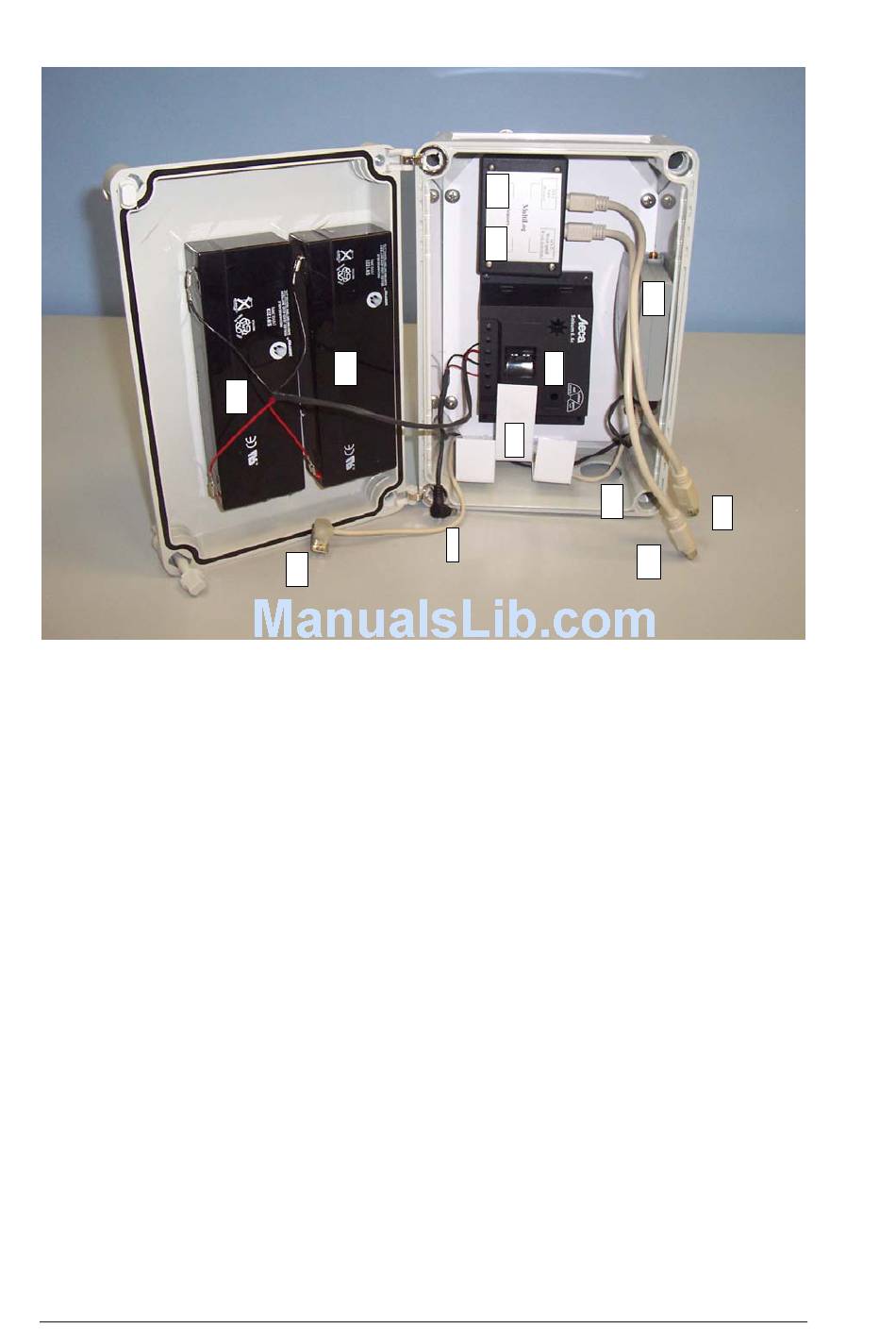

Figure 17: Wiring the Weather Station main box
C
D
L
J
A
I
B
F
G
