Fourier MultiLogPRO User Manual page 25

B. Connect the sensor cable (F) to input 1 (I/O-1) on top of
MultiLogPRO
C. Connect the sensor cable (G) to input 2 (I/O-2) on top of
MultiLogPRO
D. Connect the serial communication cable adaptor to the COMM
socket on the left side of MultiLogPRO so that the other end of the
cable will face the rear side of MultiLogPRO

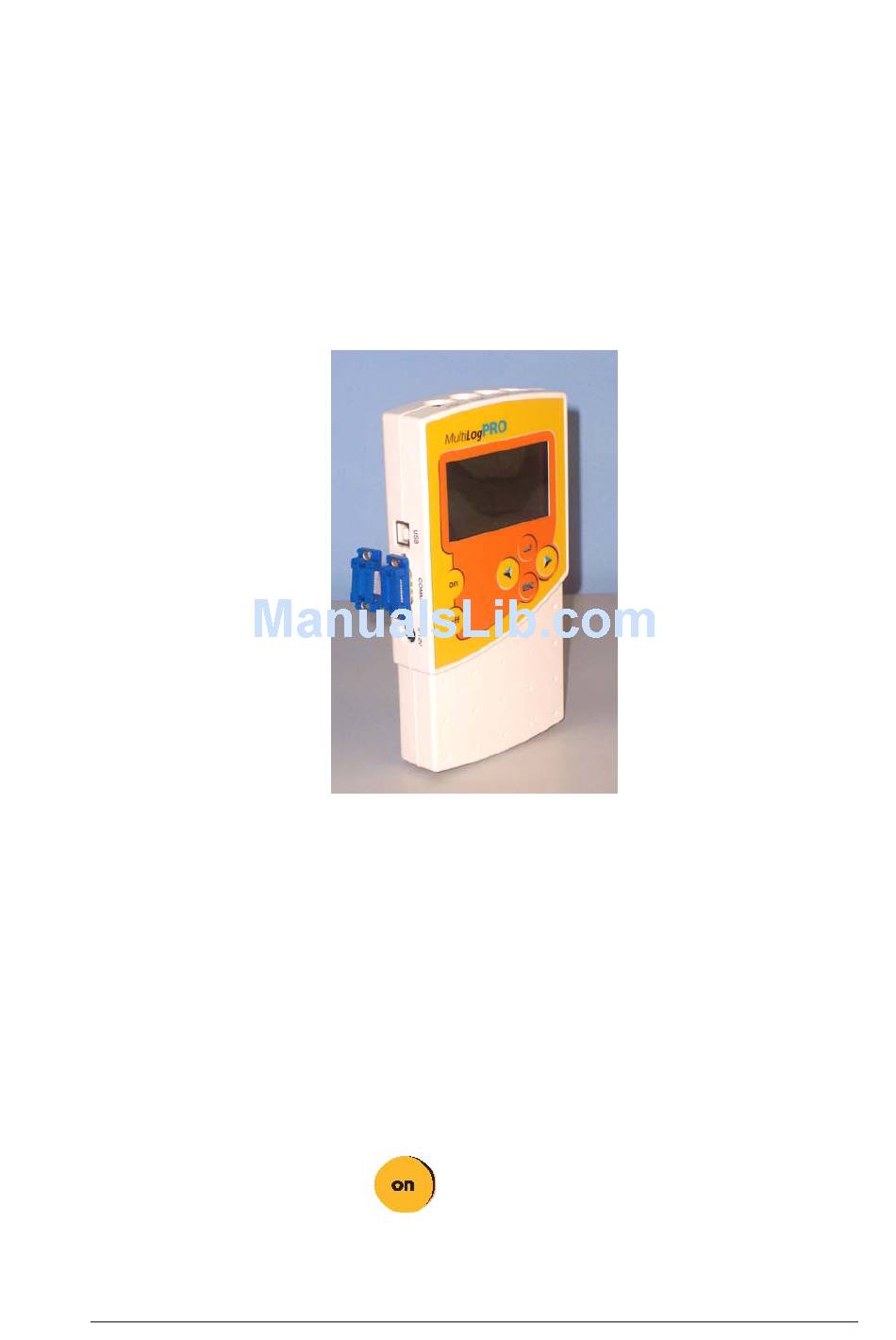

Figure 19: Connecting the serial communication cable adaptor
E. Insert the male plug of the 30m serial communication cable to the
Weather Station main box through the hole at the bottom of the
box (A) and connect it to the serial communication cable adaptor
F. Connect the power cable (I) to the 9-12V socket on the left side of
MultiLogPRO (see Figure 17)
5. Place MultiLogPRO in its holder (J) in the Weather Station main
box (see Figure 17 and Figure 18)
6. Press the On button
MultiLogPRO on
in MultiLogPRO's keypad to turn
Station Installation 19
