terminal to the female lug terminal of the charge controller cable,
and then connect the female lug terminal to the male lug terminal of
the charge controller cable
5. Connect the cables to MultiLogPRO:
A. Insert the humidity and temperature sensor cable from the
radiation shield to the Weather Station main box through the hole
at the bottom of the box (A) and connect it to input 3 (I/O -3) on
top of MultiLogPRO
B. Connect the sensor cable (F) to input 1 (I/O-1) on top of
MultiLogPRO
C. Connect the sensor cable (G) to input 2 (I/O-2) on top of
MultiLogPRO
D. Connect the communication cable (H) from the transmitter to the
COMM socket on the left side of MultiLogPRO (see Figure 17)
E. Connect the power cable (I) to the 9 -12V socket on the left side of
MultiLogPRO (see Figure 17)
6. Place MultiLogPRO in its holder (J) in the Weather Station main
box (see Figure 17 and Figure 18)

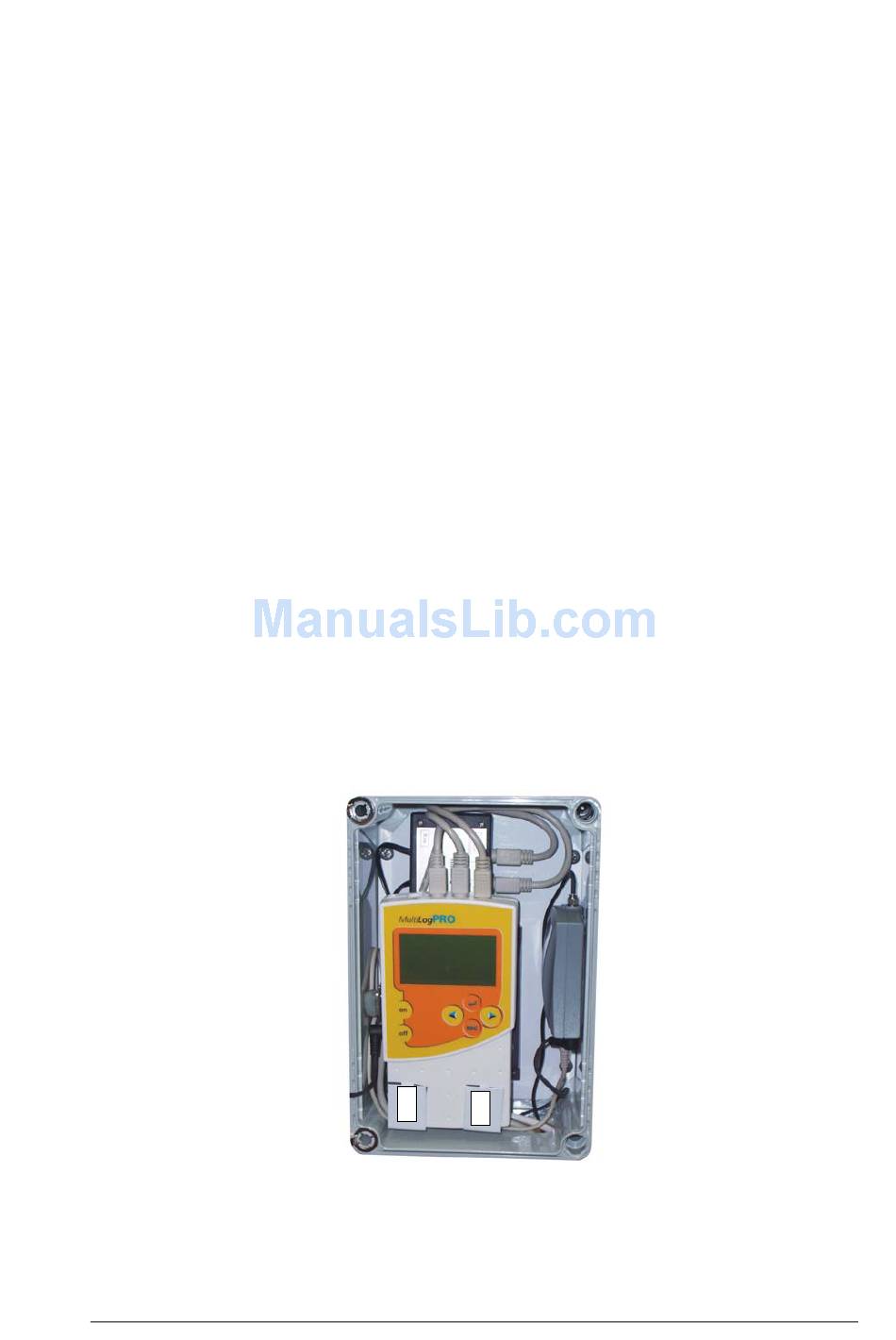

Figure 18: MultiLogPRO inside the Weather Station main box
J
J
