2. Next the Radiation Shield: Slide the two U-bolts at the back of the
Radiation Shield's mounting bracket over the tripod's extension
tube
Next the Rain Collector: Slide the two -bolts at the back of the
3.
tray over the tripod's extension tube

4.2.8 Installing the Anemometer and the Antenna Shelf

1. Install the Anemometer Base:
A. Hold the anemometer base against the top end of the pipe and
insert one U-bolt through the back of the base into the two lower
holes in the base so that the U-bolts wrap around the pipe (see
Figure 11)
B. Place a ¼ " lock washer and a ¼ " wing nut over each end of the
U-bolt and tighten the wing nuts slightly
C. Position the anemometer so that it will face the same direction as
the solar panel (see section 4.2.9 and Figure 16 ), then fasten the
wing nuts tightly
D. Insert the other U-bolt through the back of the base into the two
upper holes and then place the antenna shelf so it sits on top of
the pipe with the U bolt passing through its holes (see Figure 12)
10 Station Installation

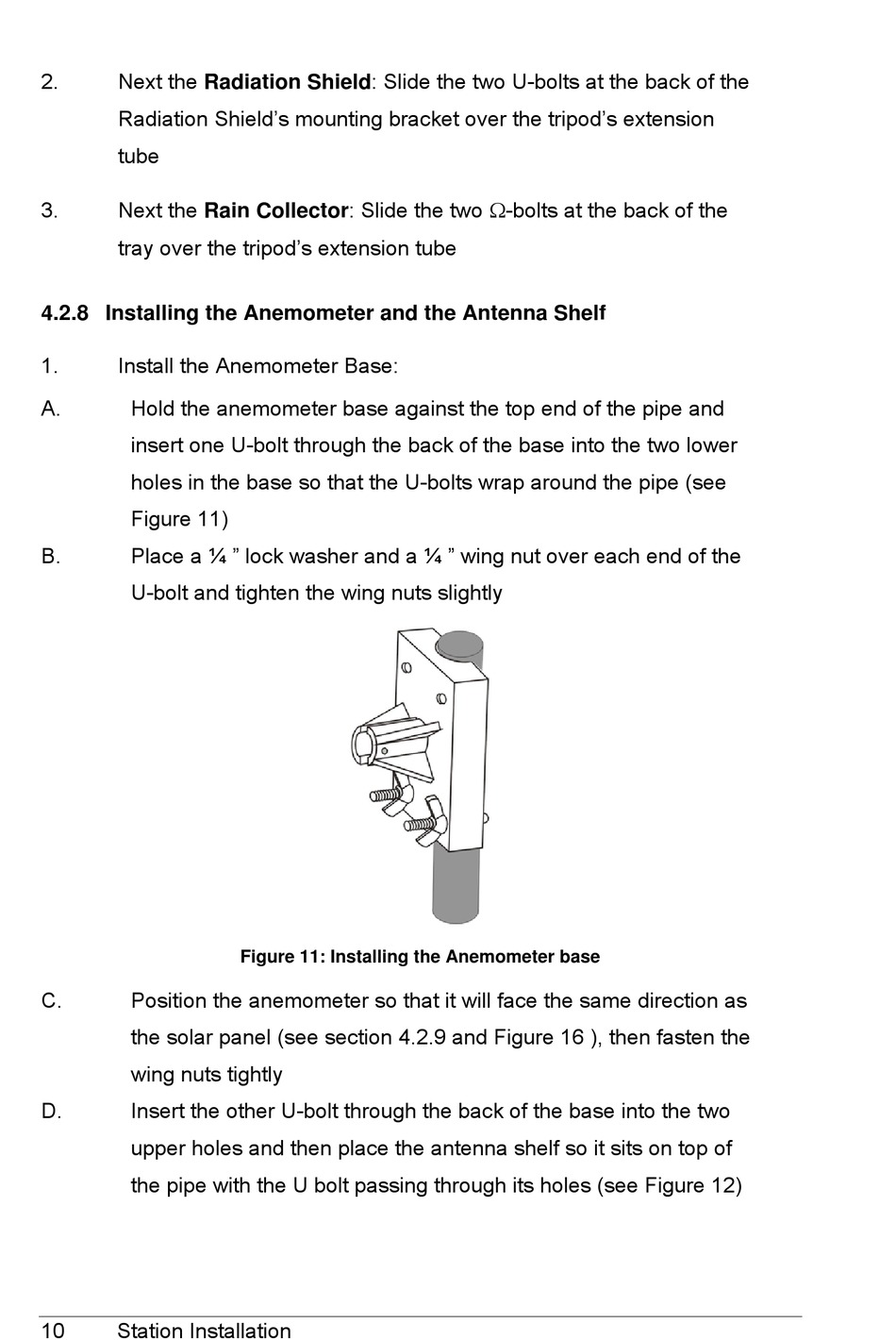

Figure 11: Installing the Anemometer base
